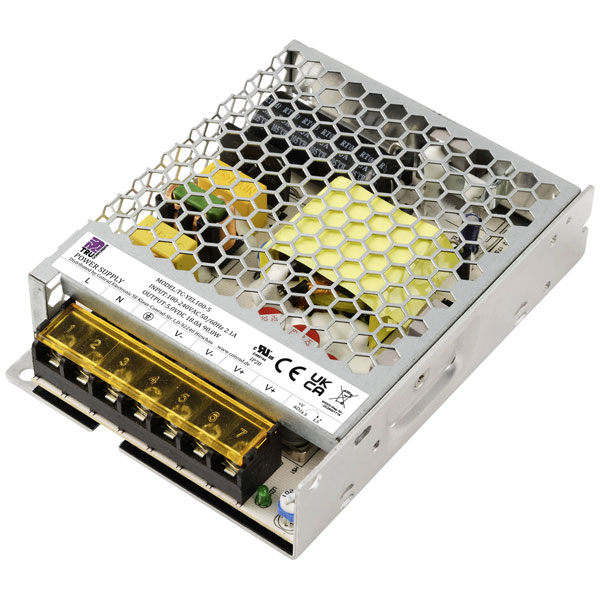

TRU COMPONENTS TC-13496736 Power supply unit 5 V DC 18 A 90 W

TruComponents TC-13496736 power supply unit delivers a stabilised output of 5 V DC at a current rating of 18 A, supporting a power capacity of 90 W. Designed for computer power supply applications, this unit ensures precise voltage regulation essential for sensitive electronic components. Its robust design makes it suitable for integration into various electrical systems requiring consistent power delivery, such as embedded systems and industrial computing environments. The TC-13496736 is engineered to meet rigorous performance standards, providing reliable operation in both commercial and industrial settings where consistent energy conversion is paramount.

Type	Power supply unit
Output Voltage	5V DC
Power Rating	90W
Output Current	18A
Input Voltage	100 - 240V AC
Ambient temperature	25°C
Connection	Screw connector
Consumption (standby)	0.5mW
Dimensions	(L x W x H) 129 x 97 x 30 mm
Efficiency to	86%
Height	30mm
Input frequency	50/60Hz
Input voltage (max.)	264V AC
Length	129mm
Max. operating temperature (derating)	70°C
Max. output current	18A
Min. input voltage	90V AC
Min. operating temperature (derating)	-20°C
No. of outputs	1
Output voltage (max.)	5V DC
Power	90W
Protection Class	I
Residual ripple	100 mVpp
Tolerance (output voltage)	+/-2%
Weight	340g
Width	97mm
