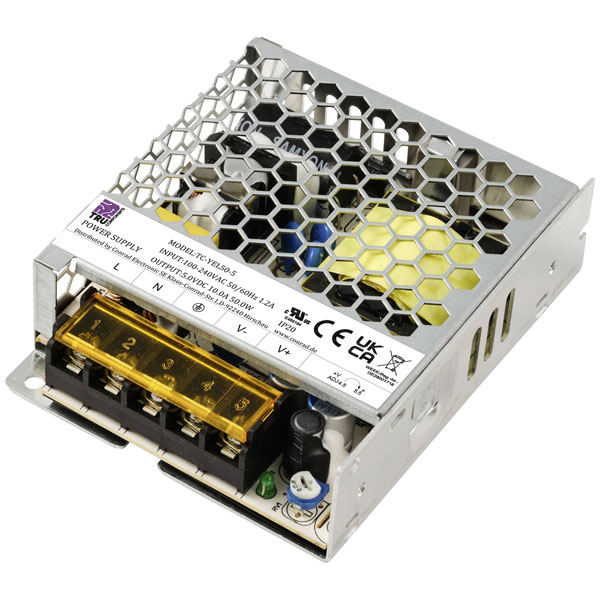

TRU COMPONENTS TC-13493656 Power supply unit 5 V DC 10 A 50 W

TruComponents TC-13493656 is a robust power supply unit designated for use in various electronic and computer systems. It delivers a stable 5 V DC output with a maximum current of 10 A, encapsulating a total power rating of 50 W, rendering it suitable for high-efficiency applications that require precise voltage regulation and dependability. Its design is optimised to be integrated into computer power supply units, making it an ideal choice for systems that demand consistent power delivery in a compact form factor. The unit's reliability and efficiency are critical in applications such as embedded systems, industrial controllers, and custom electronics where maintaining voltage stability is paramount. With its focused design specifications, the TC-13493656 fits seamlessly into environments where continuous and reliable power supply is essential.

Type	Power supply unit
Output Voltage	5V DC
Power Rating	50W
Output Current	10A
Input Voltage	100 - 240V AC
Ambient temperature	25°C
Connection	Screw connector
Consumption (standby)	0.3W
Dimensions	(L x W x H) 99 x 82 x 30 mm
Efficiency to	83%
Height	30mm
Input frequency	50/60Hz
Input voltage (max.)	264V AC
Length	99mm
Max. operating temperature (derating)	70°C
Max. output current	10A
Min. input voltage	90V AC
Min. operating temperature (derating)	-20°C
No. of outputs	1
Output voltage (max.)	5V DC
Power	50W
Protection Class	I
Residual ripple	80 mVpp
Tolerance (output voltage)	+/-2%
Weight	203g
Width	82mm
