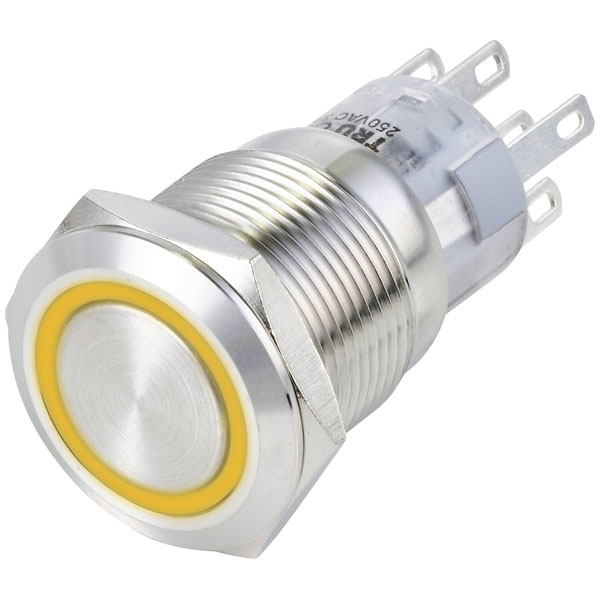

TRU COMPONENTS TC-13471352 Tamper-proof pushbutton Orange IP65 250V 3A Momentary

TRU COMPONENTS TC-13471352 is a robust tamper-proof pushbutton switch designed for reliable performance in demanding environments. This switch is rated for 250 V AC and 3 A, featuring a momentary 2 x On/(On) configuration and an orange actuator. Engineered to meet IP65 standards, it provides excellent resistance to dust and water ingress, making it suitable for use in industrial control panels, outdoor equipment, and automotive applications. The pushbutton's design ensures security against unauthorized access and tampering, ideal for applications requiring enhanced durability and operational integrity.

Type	TC-13471352
Board thickness (max.)	10mm
Bulb Type	LED (monochrome)
Casing/button colour	Stainless steel
Colour	Orange
Connection	Soldering
Contact Material	Silver alloy
Contact Resistance	≤ 50 mΩ
Content	1
Dielectric Strength	1500 VAC
Electrical lifespan	50000
Functions	momentary
Insulation Resistance	≥100 MΩ
IP Rating	IP65
Lighting type	Circular lighting
Product Type	Tamper-proof pushbutton
Recess depth	38.2mm
Recess diameter	20mm
Switch position	2 x On/(On)
Switching current (max.)	3A
Switching Voltage	250V AC
