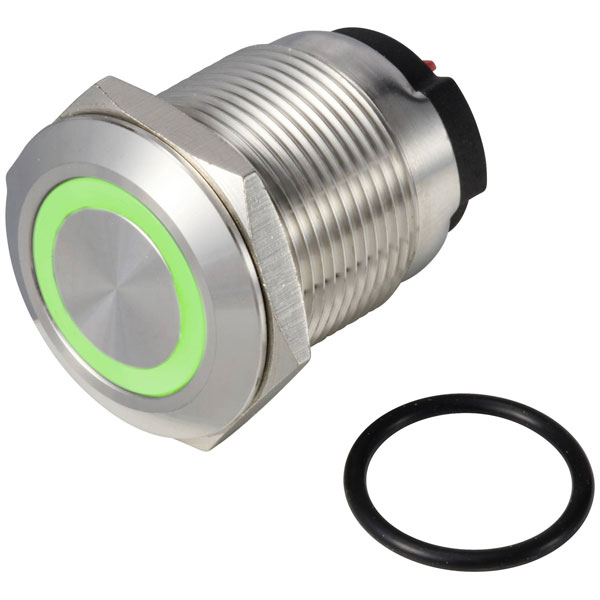

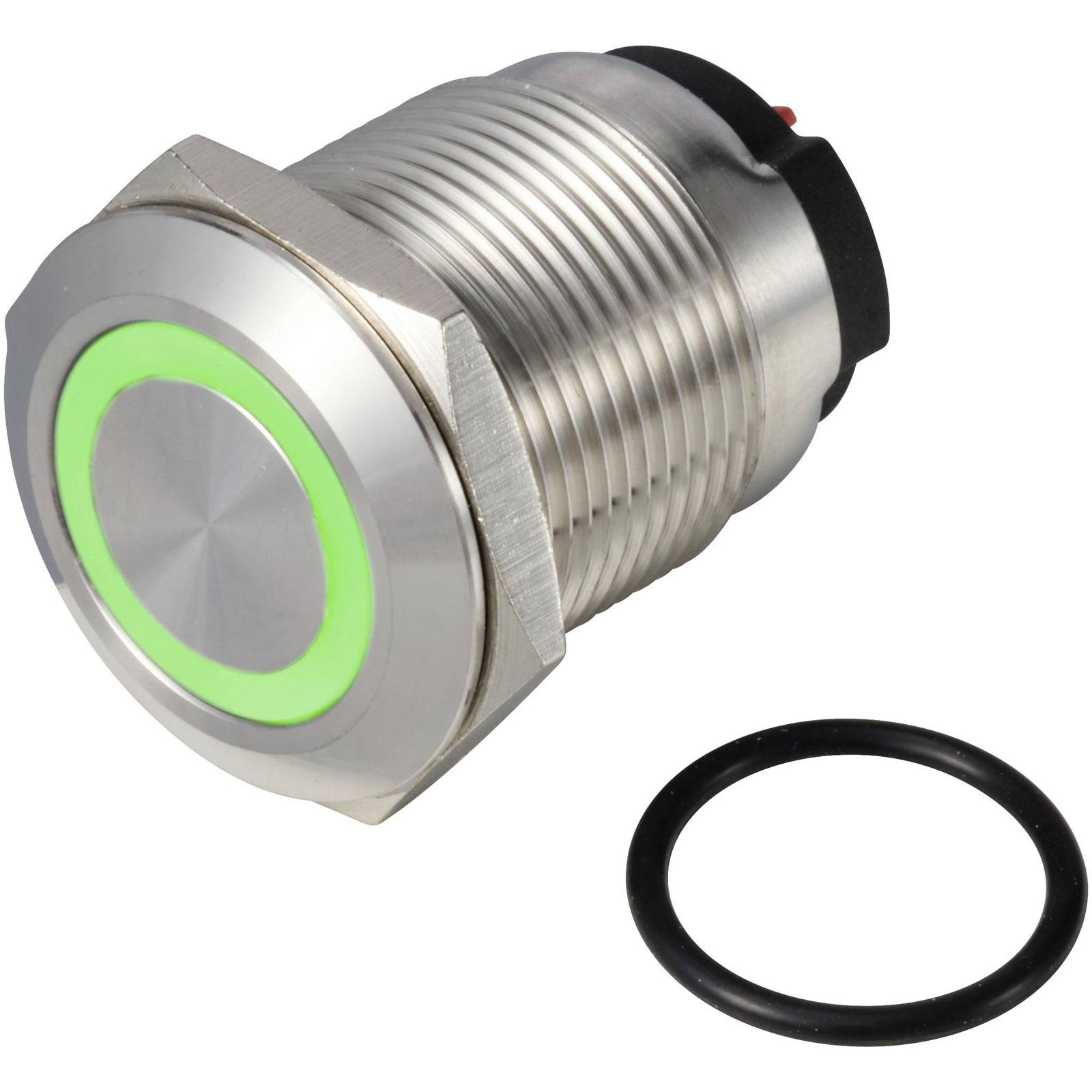

TRU COMPONENTS TC-13224216 Pushbutton Switch Green IP65 36VDC/AC 2A Off/(On)

TRU COMPONENTS TC-13224216, also known by the alternate model number ONPOW6319F-10ZE/Q/G/12V/S, is a high-quality push-button switch designed for reliable use in various electrical applications. This switch is engineered to handle voltages of up to 36 V DC/AC and to conduct a current of up to 2 A, offering a robust and durable solution for low-voltage switching needs. The device features a momentary Off/(On) contact configuration, making it suitable for applications requiring temporary activation, such as in control panels and industrial equipment. Encased in a green housing compliant with IP65 standards, this switch provides excellent protection against dust and water ingress, enhancing its suitability for use in challenging environmental conditions. Its design makes it an ideal choice for engineers focusing on reliability and performance in sectors like automation, manufacturing, and transport systems.

Type	ONPOW6319F-10ZE/Q/G/12V/S
Bulb Type	LED (monochrome)
Colour	Green
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	latch
IP Rating	IP65
Lighting type	Circular lighting
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess diameter	19mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
