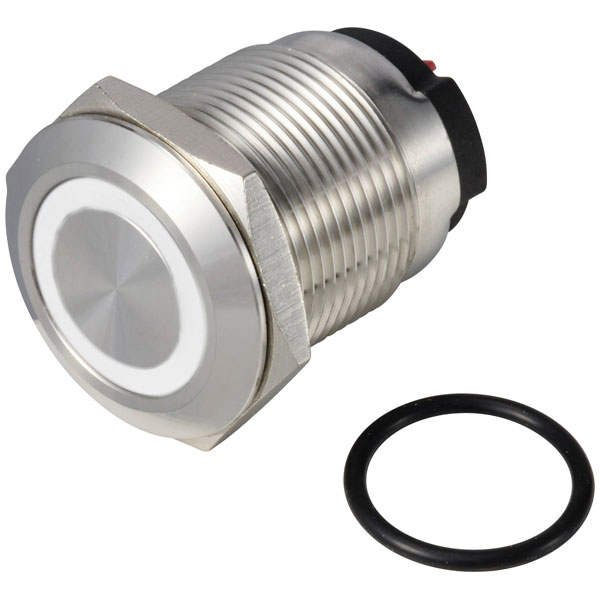

TRU COMPONENTS TC-13224208 Pushbutton Switches momentary White IP65 36V DC/AC

TRU COMPONENTS TC-13224208 represents a high-quality momentary push-button switch designed with robustness in mind. This switch, alternatively known by the description ONPOW6319F-10E/Q/W/12V/S, operates at a rated voltage of up to 36 V DC/AC and supports a current capacity of 2 A, making it suitable for a variety of low to medium current applications. The switch's IP65 rating ensures it is well-protected against dust ingress and water jets, which is particularly beneficial for use in harsher industrial and outdoor environments. Engineers commonly utilise such momentary switches in control panels, instrumentation, and user interface designs where a temporary signal or control input is required. The white actuator provides a visually clear indication when activated, fitting seamlessly into both professional and technical settings.

Type	ONPOW6319F-10E/Q/W/12V/S
Contact Configuration	None
Switch Function	Off-(On)
Current Rating	N/A
Mounting	Panel
Illumination	N/A
Panel Cutout Dimensions	N/A
Bulb Type	LED (monochrome)
Colour	White
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	momentary
IP Rating	IP65
Lighting Type	Circular lighting
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	19mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
