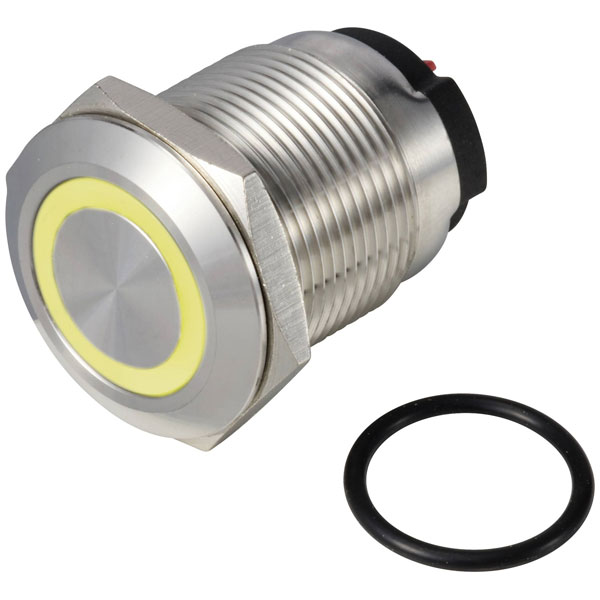

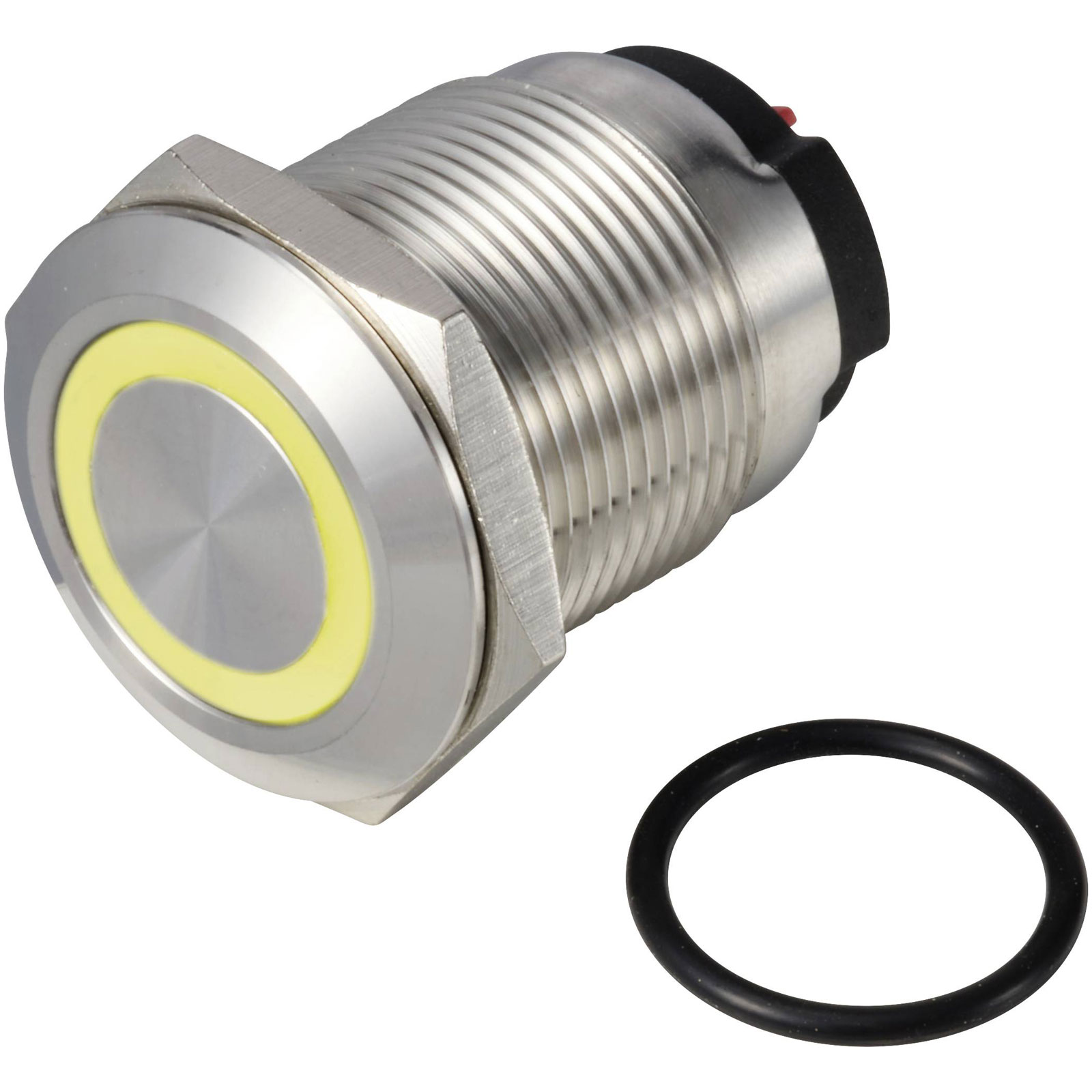

TRU COMPONENTS TC-13224200 Pushbutton Yellow 36V IP65 Momentary 1xOff/(On)

TRU COMPONENTS TC-13224200 is a robust push-button switch designed for reliable performance in demanding environments. This momentary switch offers a simple 1 x off/(on) configuration, functioning with a maximum operating voltage of 36 V DC/AC and supporting up to 2 A of current. Featuring an ingress protection rating of IP65, the switch is well-suited for outdoor or industrial applications where dust and moisture resistance is critical. The yellow actuator enhances visibility, making it ideal for control panels, machinery start/stop functions, and other equipment that requires momentary contact switching. Engineers will appreciate its durability and simplified integration into systems requiring straightforward control input mechanisms.

Type	ONPOW6319F-10E/Q/Y/12V/S
Contact Configuration	SPNO
Switch Function	Off-(On)
Mounting	Panel
Illumination	Yellow
Panel Cutout Dimensions	16.2
Bulb Type	LED (monochrome)
Colour	Yellow
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	momentary
IP Rating	IP65
Lighting Type	Circular lighting
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	19mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
