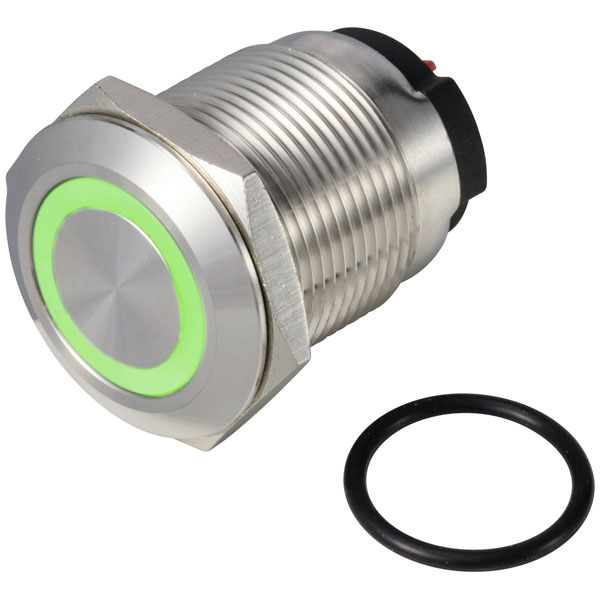

TRU COMPONENTS TC-13224196 Pushbutton Green 36V DC/AC 2A IP65 Momentary

TRU COMPONENTS TC-13224196 is a robust push-button switch designed for applications requiring reliable momentary action. This switch, also referred to as ONPOW6319F-10E/Q/G/12V/S, operates on a voltage of 36 V DC/AC with a current rating of 2 A, making it suitable for low-power circuit control and signal switching. The device features a green actuator and an off/(on) momentary function, encased in a housing that provides an IP65 protection rating, ensuring resistance to dust and water ingress. These characteristics make it particularly useful in industrial environments, control panels, and automotive applications, where durability and secure operation are critical. The switch's design prioritises longevity and reliability, critical factors in engineering projects requiring robust human-machine interface components.

Type	ONPOW6319F-10E/Q/G/12V/S
Contact Configuration	SPNO
Switch Function	1 breaker
Mounting	Panel
Illumination	Green
Panel Cutout Dimensions	16.2
Bulb Type	LED (monochrome)
Colour	Green
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	momentary
IP Rating	IP65
Lighting Type	Circular lighting
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	19mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
