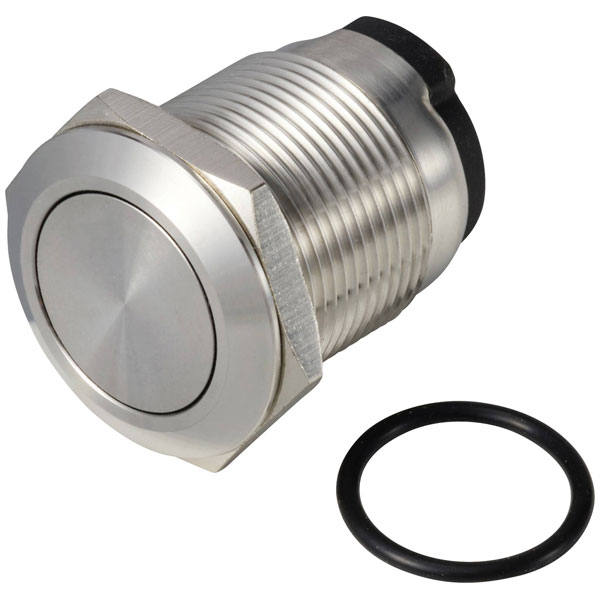

TRU COMPONENTS TC-13224188 Pushbutton Switch 36 V 2 A 1 x Off/(On) Latch IP65

TRU COMPONENTS offers the TC-13224188, a robust push-button switch designed for reliable performance. This switch, also referred to as ONPOW6319F-10Z/Q/S, operates at 36 V DC/AC with a current rating of 2 A, featuring a 1 x Off/(On) latching configuration. Engineered to meet IP65 standards, it ensures protection against dust ingress and low-pressure water jets, making it suitable for demanding environments. It is frequently utilised in industrial control panels, machinery interfaces, and other applications where secure and intermittent electrical connectivity is required. The switch's durable construction supports frequent operations, providing dependable service over its lifespan.

Type	ONPOW6319F-10Z/Q/S
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	latch
IP Rating	IP65
Lighting type	None
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess diameter	19mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
