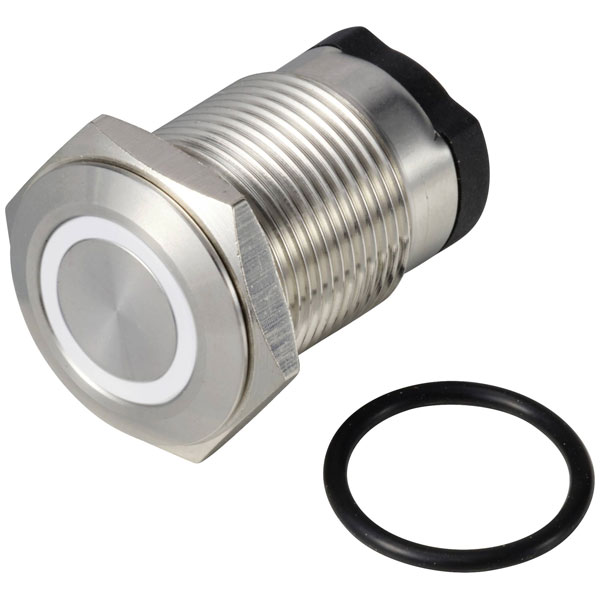

TRU COMPONENTS presents the TC-13224180, a robust push-button switch engineered for reliable performance in various applications. Operating as part number ONPOW6316F-10ZE/Q/W/12V/S, this switch supports voltages up to 36 V DC/AC and can handle currents of up to 2 A. Designed with an IP65 ingress protection rating, it offers resistance against dust and low-pressure water jets, making it suitable for both indoor and moderately harsh outdoor environments. The switch features a single off/(on) latching mechanism and is distinguished by its white actuator, making it ideal for situations requiring user feedback in control panels, industrial machinery interfaces, and other electronic equipment requiring momentary activation. With its robust design, the TC-13224180 ensures dependable operation and durability in demanding engineering applications.
| Type |
ONPOW6316F-10ZE/Q/W/12V/S |
| Contact Configuration |
SPNO |
| Switch Function |
Off-(On) |
| Mounting |
Panel |
| Illumination |
White |
| Panel Cutout Dimensions |
16.2 |
| Bulb Type |
LED (monochrome) |
| Colour |
White |
| Connection |
Quick-connect |
| Content |
1 |
| Dielectric Strength |
1,500 V, RMS 50 Hz, 1 min. |
| Electrical lifespan |
50,000 cycles |
| Functions |
latch |
| IP Rating |
IP65 |
| Lighting Type |
Circular lighting |
| Material |
Stainless steel |
| Max. temperature |
55°C |
| Min. temperature |
-25°C |
| Product Type |
Pushbutton |
| Recess Diameter |
16mm |
| Switch position |
1 x Off/(On) |
| Switching current (max.) |
2A |
| Switching Voltage |
36V DC/AC |
