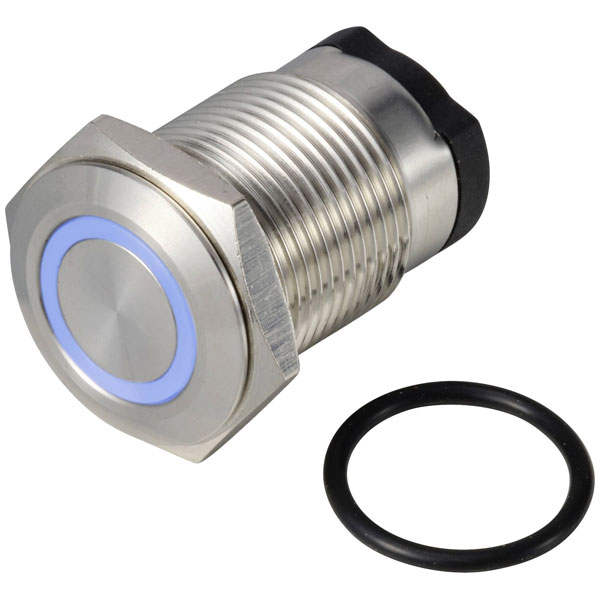

TRU COMPONENTS TC-13224176 Pushbutton Blue 36V DC/AC 2A IP65

TRU COMPONENTS' part number TC-13224176 is a robust push-button switch that operates with a rating of 36 V DC/AC and a current capacity of 2 A. Designed with IP65 protection, it is suitable for applications requiring dust-tight and water-resistant performance. The switch features a blue actuator with a momentary (Off)/(On) operational function, making it ideal for use in control panels, machine interfaces, and various industrial environments where reliable manual control is essential. Additionally, the build quality supports its deployment in environments subjected to moderate exposure to moisture and dust, enhancing its appeal for automotive and manufacturing setups. The alternate designation for this model is ONPOW6316F-10ZE/Q/B/12V/S, reflecting its versatile application potential.

Type	ONPOW6316F-10ZE/Q/B/12V/S
Contact Configuration	SPNO
Switch Function	On/Off
Current Rating	N/A
Mounting	Panel
Illumination	N/A
Panel Cutout Dimensions	N/A
Bulb Type	LED (monochrome)
Colour	Blue
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	latch
IP Rating	IP65
Lighting Type	Circular lighting
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	16mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
