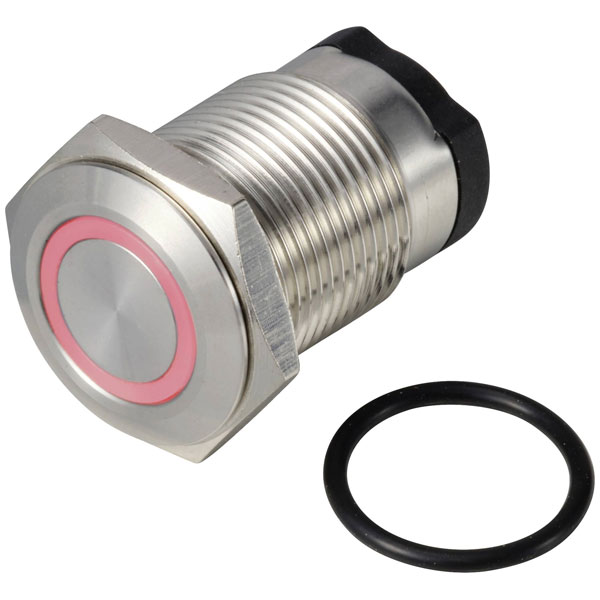

TRU COMPONENTS TC-13224164 Pushbutton Switch Red 36V DC AC 2A IP65 Latching

TRU COMPONENTS TC-13224164 is a robust push-button switch designed for enduring performance and reliability in demanding environments. The switch, also known by its alternate description ONPOW6316F-10ZE/Q/R/12V/S, features a latching mechanism, allowing it to maintain its state after being actuated. It operates effectively at a voltage of 36 V DC/AC and can handle current ratings up to 2 A. With an IP65 rating, the switch offers excellent protection against dust and low-pressure water jets, making it suitable for industrial control panels, machinery interfaces, and outdoor equipment requiring dependable switch performance. Its red actuator provides clear visual indication, ideal for emergency stop applications where visibility is critical.

Type	ONPOW6316F-10ZE/Q/R/12V/S
Bulb Type	LED (monochrome)
Colour	Red
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	latch
IP Rating	IP65
Lighting type	Circular lighting
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess diameter	16mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
