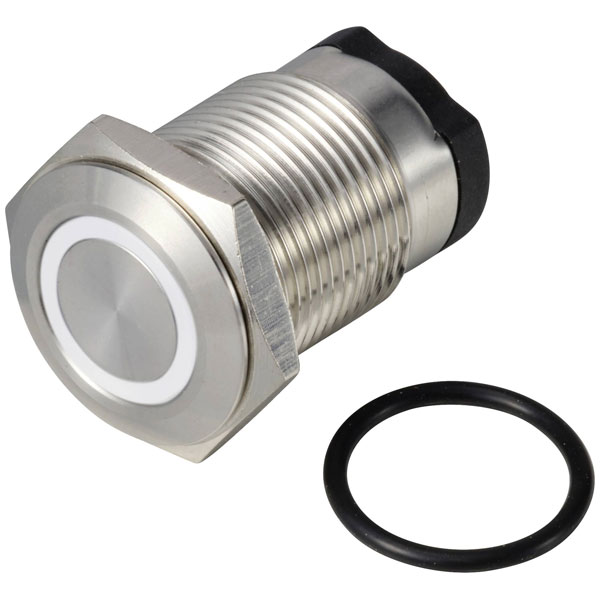

TRU COMPONENTS TC-13224160 Pushbutton White IP65 36V DC/AC 2A Momentary

TRU COMPONENTS TC-13224160 is a push-button switch designed for both direct current (DC) and alternating current (AC) applications, capable of handling voltages up to 36 V and currents up to 2 A. Its IP65 rating ensures robust protection against dust ingress and low-pressure water jets from any direction, making it suitable for demanding environments. This momentary switch, which is often described with the alternate part number ONPOW6316F-10E/Q/W/12V/S, features a white actuator for easy visibility in various settings. The switch is commonly utilised in industrial control systems, consumer electronics, and other applications requiring a reliable, temporary electrical contact. Its thoughtful design and durability make it an ideal choice for installations where frequent user interaction is anticipated.

Type	ONPOW6316F-10E/Q/W/12V/S
Contact Configuration	None
Switch Function	Off-(On)
Current Rating	N/A
Mounting	Panel
Illumination	N/A
Panel Cutout Dimensions	N/A
Bulb Type	LED (monochrome)
Colour	White
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	momentary
IP Rating	IP65
Lighting Type	Circular lighting
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	16mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
