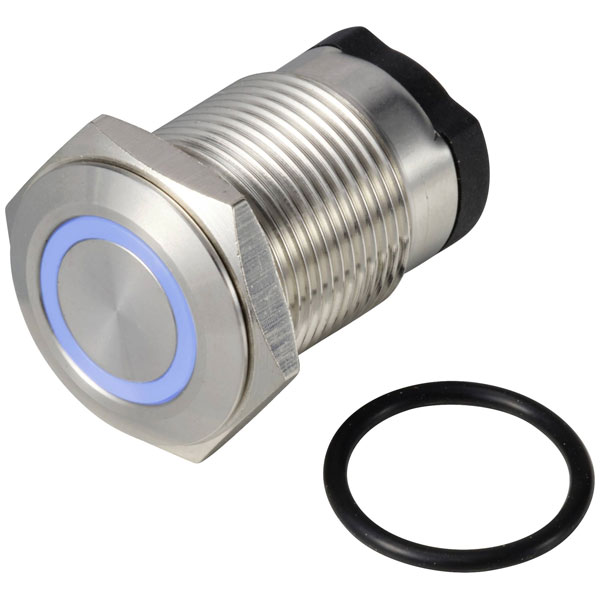

TRU COMPONENTS TC-13224156 Pushbutton Blue 36V DC/AC 2A IP65 Momentary

TRU COMPONENTS TC-13224156 is a sophisticated push-button switch designed for versatile applications requiring momentary action. As an ONPOW6316F-10E/Q/B/12V/S model, it operates efficiently within a voltage range of 36 V DC/AC and supports a current rating of 2 A. Featuring a robust IP65-rated construction, it ensures protection against dust and water ingress, making it well-suited for demanding environments. The switch's blue actuator provides clear visual feedback, and its single-pole, normally-off (Off)/(On) configuration is ideal for temporary engagement tasks in industrial control panels, automotive systems, and instrumentation operations. This durable switch caters to engineers seeking reliable and straightforward integration into both AC and DC electrical systems.

Type	ONPOW6316F-10E/Q/B/12V/S
Contact Configuration	SPNO
Switch Function	On/Off
Mounting	Panel
Illumination	Blue
Panel Cutout Dimensions	16.2
Bulb Type	LED (monochrome)
Colour	Blue
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	momentary
IP Rating	IP65
Lighting Type	Circular lighting
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	16mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
