TRU COMPONENTS TC-13224152 ONPOW Pushbutton Yellow Momentary 36V IP65

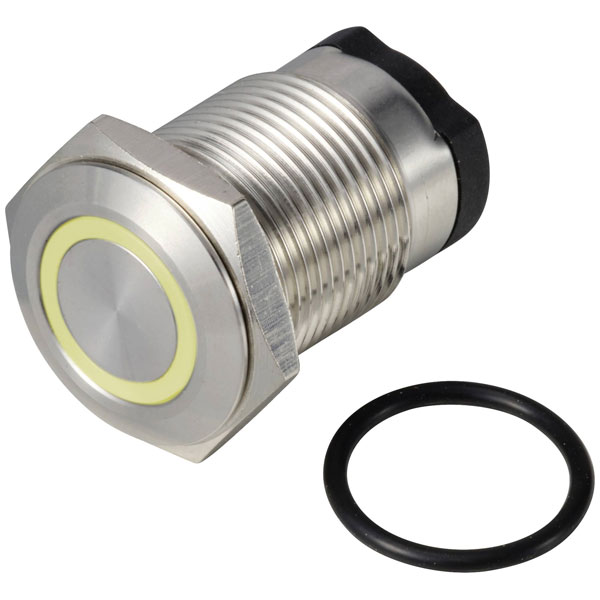

TRU COMPONENTS TC-13224152 is a push-button switch known for its durability and versatility in demanding environments. This ONPOW model, labelled as ONPOW6316F-10E/Q/Y/12V/S, operates at 36 volts DC or AC with a current rating of 2 amperes, and features a momentary 'Off/(On)' operation. It is designed with a yellow actuator and an IP65 ingress protection rating, ensuring protection against dust ingress and low-pressure water jets from any direction. This switch is commonly employed in industrial control panels, automation systems, and equipment that requires reliable, sealed actuation. Its robust construction and ease of integration make it ideal for applications in harsh conditions where environmental resistance is essential.

Type	ONPOW6316F-10E/Q/Y/12V/S
Contact Configuration	SPNO
Switch Function	Off-(On)
Mounting	Panel
Illumination	Yellow
Panel Cutout Dimensions	16.2
Bulb Type	LED (monochrome)
Colour	Yellow
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	momentary
IP Rating	IP65
Lighting Type	Circular lighting
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	16mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
