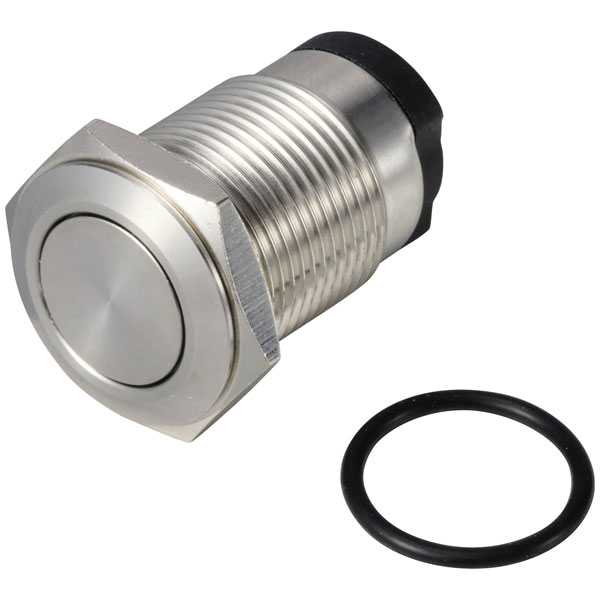

TRU COMPONENTS TC-13224140 Pushbutton 36V 2A IP65 Off/(On) latch

TRU COMPONENTS TC-13224140 is a robust push-button switch engineered for reliable performance in demanding applications. The part number ONPOW6316F-10Z/Q/S denotes its classification as a push-button switch, capable of handling up to 36 V DC/AC and 2 A of current. This model features an Off/(On) latch mechanism, providing a momentary action upon activation, and is rated at IP65, ensuring resistance against dust ingress and water jets from any direction. Suitable for use in industrial settings, the switch serves a broad range of applications, including control panels and machinery interfaces, where a durable and responsive interface is critical. With its engineering-grade construction, the TC-13224140 offers dependable operation in environments requiring consistent and durable push-button activation.

Type	ONPOW6316F-10Z/Q/S
Contact Configuration	SPNO
Switch Function	Off-(On)
Current Rating	N/A
Mounting	Panel
Illumination	N/A
Panel Cutout Dimensions	N/A
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	latch
IP Rating	IP65
Lighting Type	None
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	16mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
