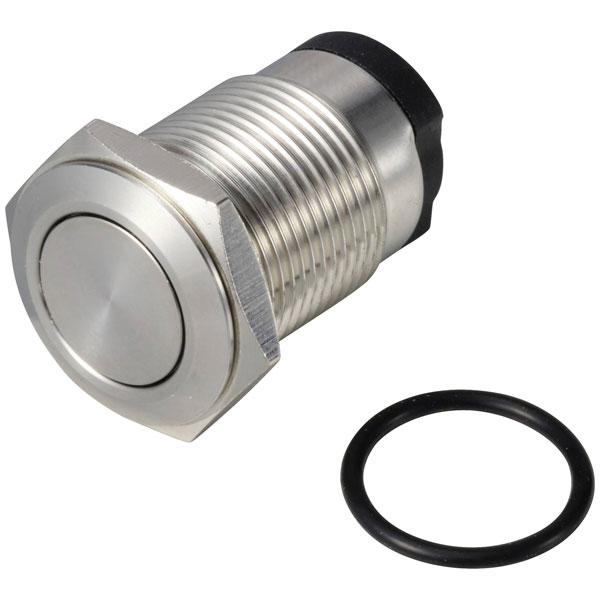

TRU COMPONENTS TC-13224136 ONPOW6316F-10/Q/S Pushbutton 36 V DC/AC 2 A IP65

TRU COMPONENTS TC-13224136, also known as the ONPOW6316F-10/Q/S, is a momentary push-button switch designed for both DC and AC circuits operating at 36 volts with a current capacity of 2 amperes. Featuring an ingress protection rating of IP65, this switch is well-suited for environments where protection against dust and water ingress is required. This push-button switch configuration is described as 1 x Off/(On), indicating a single throw action returning to the 'off' position upon release, making it ideal for applications such as industrial control systems, panel interfaces, and signal processing equipment. The robust construction ensures reliable performance in demanding settings, providing engineers with a durable component for a variety of electronic and electrical projects.

Type	ONPOW6316F-10/Q/S
Contact Configuration	SPNO
Switch Function	1 breaker
Current Rating	N/A
Mounting	Panel
Illumination	N/A
Panel Cutout Dimensions	N/A
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	momentary
IP Rating	IP65
Lighting Type	None
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	16mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
