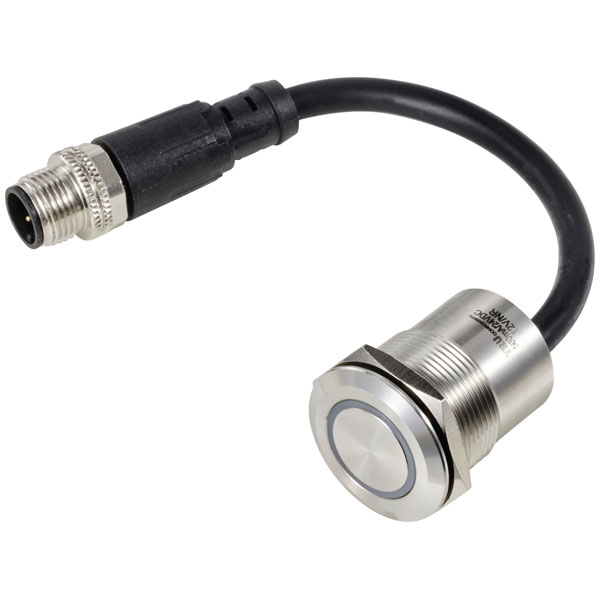

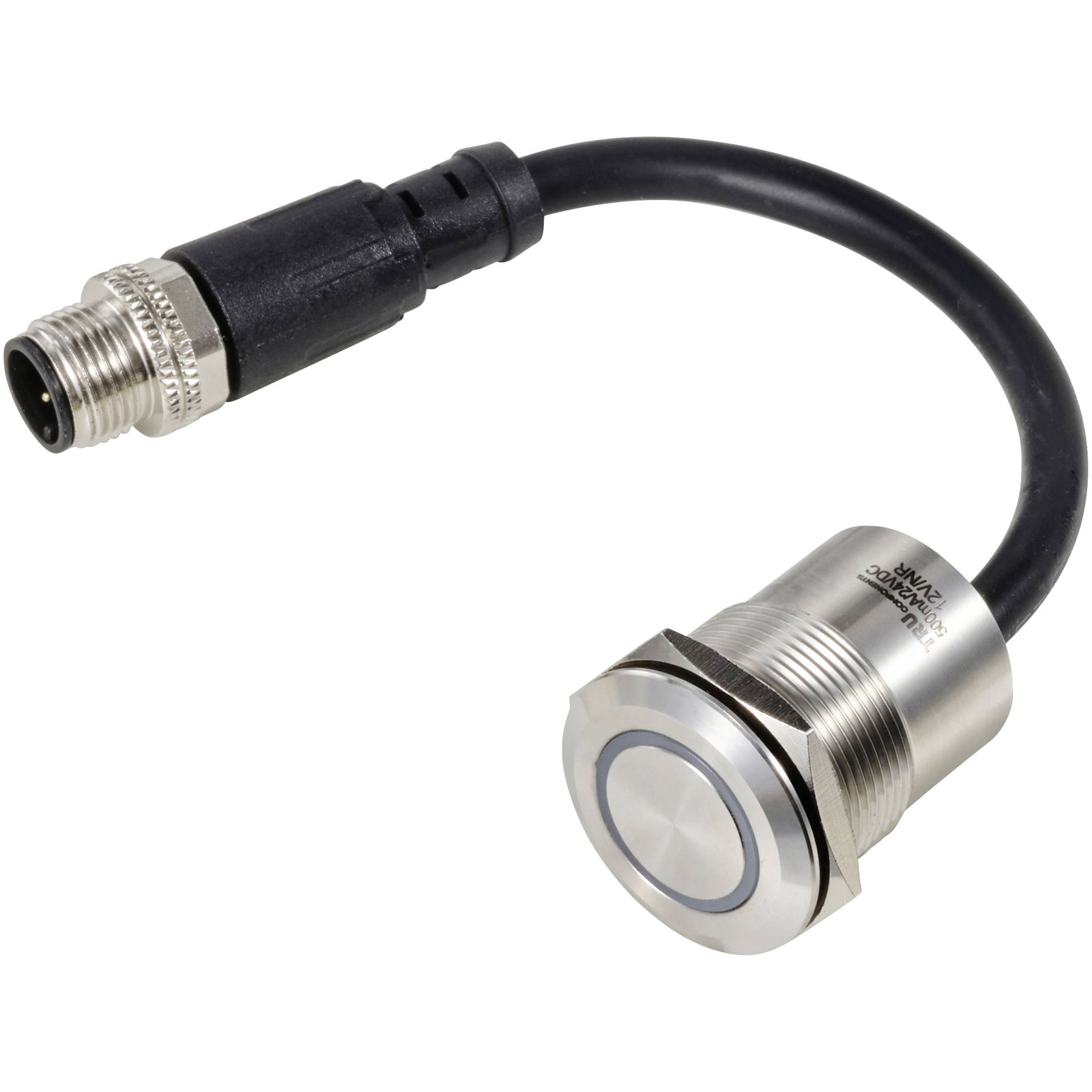

TRU COMPONENTS TC-12835308 M12 Male Connector Pushbutton 24V 0.2A Green 28.5mm

TRU COMPONENTS TC-12835308 is a robust M12 male connector pushbutton switch, model TC-PS223P10YSSG12T, designed for precise control applications. The push-button switch operates at 24 volts with a maximum current rating of 0.2 amperes, and it features a momentary action with 1 x Off/(On) configuration, indicated by a green button for clear status visibility. Its piezoelectric mechanism ensures high reliability and longevity, making it suitable for demanding environments. This component is ideal for incorporation into industrial automation systems, control panels, and instrumentation where quick and reliable tactile switch interactions are required. The compact design with a diameter of 28.5 mm allows seamless integration into existing systems while maintaining space efficiency.

Type	PNP output, LED operating voltage 12 V
Actuating Force	5N
Board thickness (max.)	8mm
Bulb Type	LED (monochrome)
Button diameter	13.7mm
Casing/button colour	Stainless steel
Colour	Green
Connection	M12 plug
Content	1
Diameter	28.5mm
Dimensions	(Ø) 28.5 mm
Electrical lifespan	50,000,000 cycles
Front panel cut-out	22mm
Functions	momentary
Lighting type	Circular lighting
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Piezo pushbutton
Recess diameter	22mm
Switch position	1 x Off/(On)
Switch/button features	Planar
Switching current (max.)	0.2A
Switching Voltage	24V
