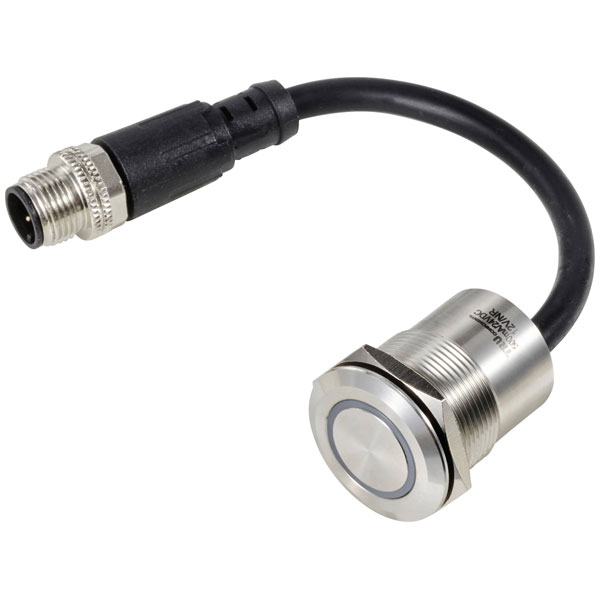

TRU COMPONENTS TC-12835304 Piezo pushbutton Red 24V 0.2A M12 male connector

TRU COMPONENTS TC-12835304 is a Piezo pushbutton switch featuring an M12 male connector, designed with a robust construction suitable for demanding environments. With its 24 V and 0.2 A electrical rating, this switch offers reliable momentary on functionality, returning to its off state when not engaged. The product is characterised by its vibrant red colour and utilizes a durable Piezo mechanism, which is highly resistant to wear and tear, making it ideal for applications that demand high durability and longevity, such as industrial control panels and machinery interface systems. Its compact form factor, combined with an M12 connector, allows for straightforward integration into existing electrical systems where space may be a constraint. This switch meets the rigorous needs of engineers focused on both functionality and durability in their system designs.

Type	PNP output, LED operating voltage 12 V
Contact Configuration	SPNO
Switch Function	On/Off
Mounting	Panel
Panel Cutout Dimensions	16.2
Actuating Force	5N
Board thickness (max.)	8mm
Bulb Type	LED (monochrome)
Button Diameter	13.7mm
Casing/button colour	Stainless steel
Colour	Red
Connection	M12 plug
Content	1
Diameter	28.5mm
Dimensions	(Ø) 28.5mm
Electrical lifespan	50,000,000 cycles
Front panel cut-out	22mm
Functions	momentary
Lighting Type	Circular lighting
Material	Stainless steel
Maximum Temperature	55°C
Min. temperature	-25°C
Product Type	Piezo pushbutton
Recess Diameter	22mm
Switch position	1 x Off/(On)
Switch/button features	Planar
Switching current (max.)	0.2A
Switching Voltage	24V
