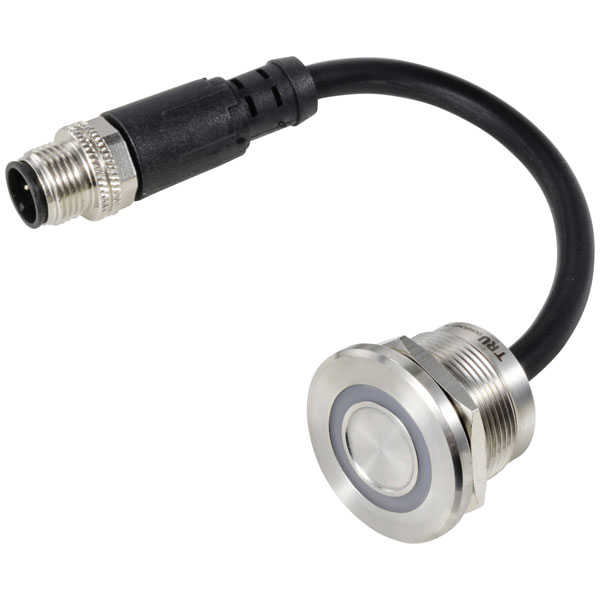

TRU COMPONENTS TC-12835300 is a high-reliability push-button switch featuring the TC-TS22A10YSSG12M12 male connector. This touch button is engineered for momentary switching applications, operating at 24 V and capable of handling up to 0.5 A of current. With an ingress protection rating of IP65, it is designed to resist dust and low-pressure water jets, making it suitable for environments requiring resilience against mild environmental challenges. The switch is distinguished by a green actuator and an operation type of Off/(On), indicating that it returns to the off position upon release. Common engineering applications include industrial control panels, machinery operation interfaces, and automation systems where robust and reliable user inputs are essential.
| Type |
PNP output, LED operating voltage 12 V |
| Actuating Force |
0N |
| Board thickness (max.) |
8mm |
| Bulb Type |
LED (monochrome) |
| Button diameter |
13.7mm |
| Casing/button colour |
Stainless steel |
| Colour |
Green |
| Connection |
M12 plug |
| Contact Resistance |
20mΩ |
| Content |
1 |
| Diameter |
25mm |
| Dimensions |
(Ø) 25 mm |
| Electrical lifespan |
50,000,000 cycles |
| Front panel cut-out |
22mm |
| Functions |
momentary |
| Insulation Resistance |
600VDC 10mΩ |
| IP Rating |
IP65 |
| Lighting type |
Circular lighting |
| Material |
Stainless steel |
| Max. temperature |
55°C |
| Min. temperature |
-25°C |
| Product Type |
Touch button |
| Recess diameter |
22mm |
| Switch position |
1 x Off/(On) |
| Switch/button features |
capacitive |
| Switching current (inductive) |
0.5A |
| Switching current (max.) |
0.5A |
| Switching Voltage |
24V |
