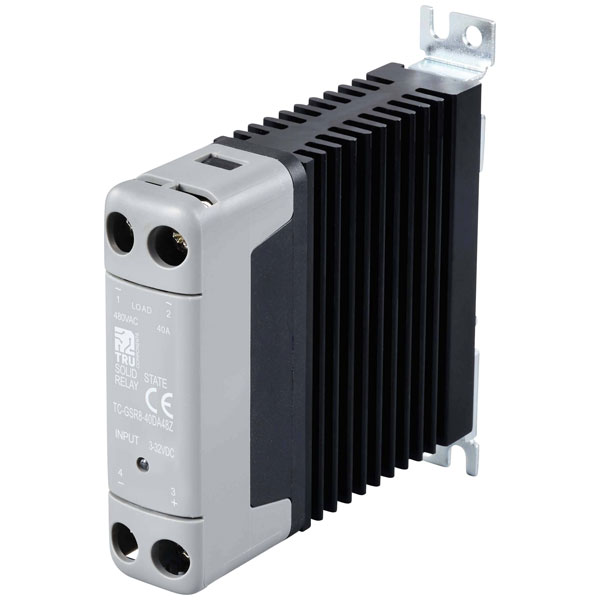

TRU COMPONENTS TC-12705388 Solid State Relay 40A 480VAC Zero crossing

TRU COMPONENTS TC-12705388 is a solid state relay designed for reliable electronic switching, characterised by its ability to handle a current up to 40 amperes with a maximum switching voltage of 480 volts AC. This zero crossing semiconductor switch features a zero crossing mechanism, which reduces electrical noise by allowing the relay to switch at the point when the AC waveform crosses zero volts. Such features enhance the longevity and performance of the relay, making it well-suited for applications in industrial automation where precise control and reduced electromagnetic interference are critical. Particularly important in environments that demand high-duty cycles, this solid state relay is capable of performing efficiently in motor control, heating control systems, and other high-power applications. Due to its semiconductor-based design, it offers advantages over traditional electromechanical relays, such as faster switching times and absence of mechanical wear.

Type	TC-GSR8-40DA48Z
Length	103mm
Width	22.5mm
Height	100mm
Connection	Screw terminal
Contact Type	1 maker
Content	1
Control current (max.)	20mA
Control voltage (max.)	32V DC
Control voltage (min.)	3V DC
Control voltage range	3 - 32 V DC
Current load (max.)	40A
Max. output current	40A
Max. temperature	80°C
Min. temperature	-30°C
Product Type	SSR
Switching type	Zero crossing
Switching voltage (max.)	480V AC
Switching voltage (min.)	24V AC
Weight	280g
