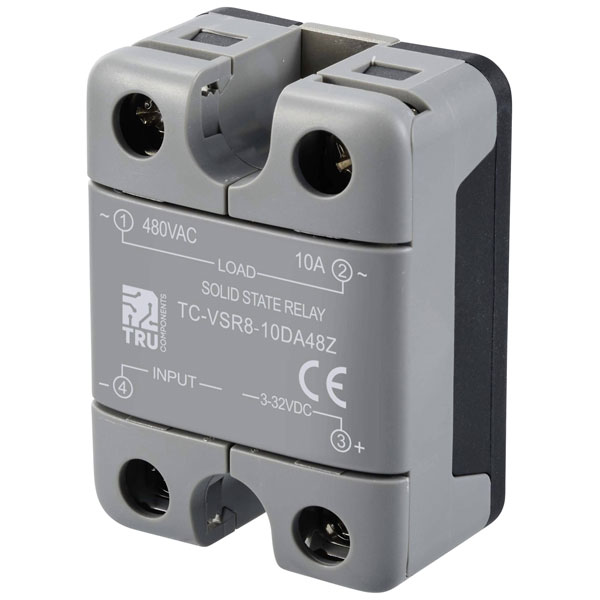

TRU COMPONENTS TC-12705356 Solid State Relay 10A 480V AC Zero crossing

TRU COMPONENTS TC-12705356 is a robust solid state relay designed for high-performance electronic switching applications. This semiconductor switch, also known as an SSR, features a maximum switching voltage of 480 V AC and is capable of handling currents up to 10 A. Notably, it employs a zero crossing function to reduce electrical interference and enhance the longevity of connected components. These attributes make it an ideal choice for a variety of engineering applications, such as industrial automation systems, HVAC controls, and motor drives, where reliability and precise control are crucial. The component's solid state nature ensures silent operation and reduces maintenance compared to traditional electromechanical relays.

Type	TC-VSR8-10DA48Z
Contact Configuration	1NO
Switching Current	10A
Length	59.3mm
Width	44.5mm
Height	27.3mm
Connection	Screw terminal
Content	1
Control Current (max.)	20mA
Control voltage (max.)	32V DC
Control voltage (min.)	3V DC
Control voltage range	3 - 32 V DC
Max. output current	10A
Max. temperature	80°C
Min. temperature	-30°C
Product Type	SSR
Switching type	Zero crossing
Switching voltage (max.)	480V AC
Switching voltage (min.)	24V AC
Weight	145g
