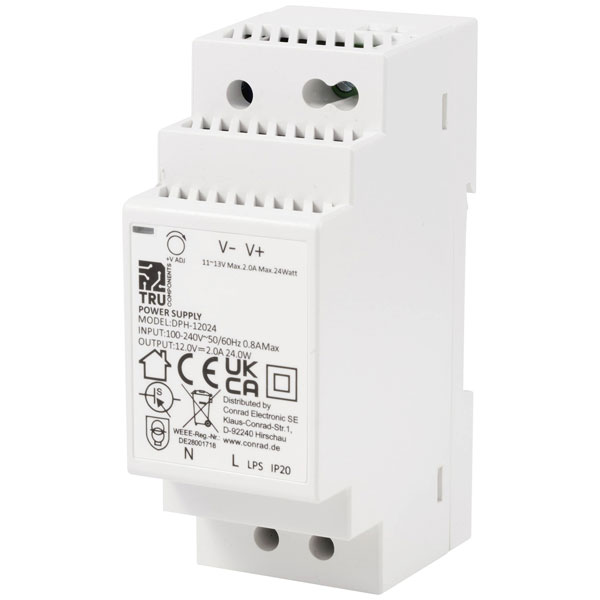

TRU COMPONENTS TC-10580808 is a robust rail-mounted power supply unit designed for demanding industrial environments. With a voltage output of 12 V DC and a current capacity of 2 A, this unit provides a total power output of 24 W, making it ideal for powering various industrial control systems. The single-output configuration streamlines and simplifies installation, while its compact form factor and DIN rail mounting capability ensure efficient use of space in control panels. As part of the DPH-12024 series, this open and DIN power supply module is well-suited for applications requiring reliable power conversion in automation systems, machinery, and telecommunications infrastructure. Its durable construction and precise performance make it a reliable choice for engineers requiring a dependable and efficient power solution.
| Nominal value output current 1 |
2A |
| Number of Outputs |
1 |
| 1st secondary output voltage |
12V |
| 2nd secondary output voltage |
12V |
| 3rd secondary output voltage |
12V |
| Content |
1 |
| Depth |
35mm |
| Dimensions (L x W x H) |
35 x 58 x 90mm |
| Efficiency |
88% |
| Height |
90mm |
| Input Voltage |
100-240 V AC, 50/60 Hz |
| Max. output current 1 |
2A |
| Maximum Operating Temperature |
70°C |
| No. of outputs |
1 |
| Nominal value output current 2 |
2A |
| Nominal value output current 3 |
2A |
| Nominal value output voltage 1 [DC] |
12V |
| Nominal value output voltage 2 |
12V |
| Nominal value output voltage 3 |
12V |
| Operating temperature (min.) |
-20°C |
| Output current (max.) - rounded |
2A |
| Output Voltage (max.) [DC] |
13.8V |
| Output voltage (min.) [DC] |
10.8V |
| Output voltage stabilized |
12V |
| Power |
24W |
| Product Type |
Rail mounted PSU (DIN) |
| Rated supply voltage AC 50 Hz |
12V |
| Rated supply voltage AC 60 Hz |
12V |
| Rated supply voltage DC |
12V |
| Type of electric connection |
Screw terminal |
| Voltage type (supply voltage) |
DPH-12024 |
| Weight |
120g |
| Width |
58mm |
