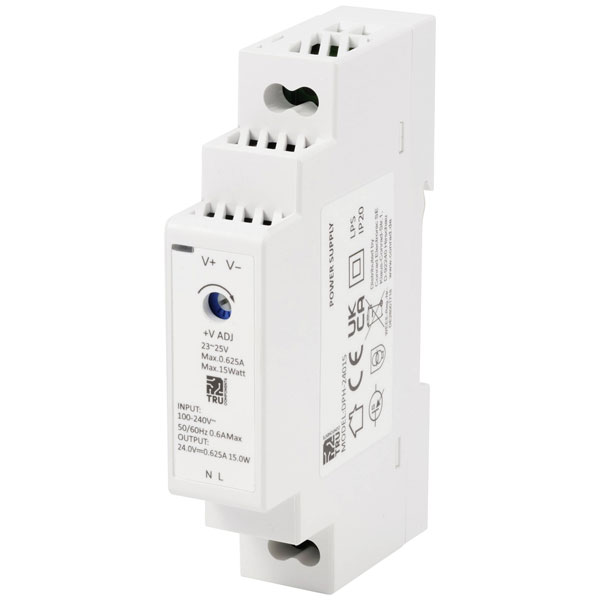

TRU COMPONENTS TC-10580804, also known as the DPH-24015, is an industrial power supply unit designed for rail mounting applications. This DIN rail PSU provides a steady 24 V DC output with a current capacity of 0.625 A, delivering up to 15 W of power through a single output channel. Engineered for use in automated systems and machinery, the unit is ideal for integration into control panels and various industrial environments where reliable power distribution is critical. The product's design favours ease of installation and maintenance, making it a practical choice for engineers tasked with setting up or retrofitting power supply configurations in industrial settings. Its compact form factor allows for efficient space utilisation within equipment enclosures, maintaining a tidy and accessible setup.
| Nominal value output current 1 |
0.625A |
| Number of Outputs |
1 |
| Power Rating |
15W |
| Content |
1 |
| Depth |
18mm |
| Dimensions (L x W x H) |
18 x 58 x 90mm |
| Efficiency |
86% |
| Height |
90mm |
| Input Voltage |
100-240 V AC, 50/60 Hz |
| Max. output current 1 |
0.625A |
| Maximum Operating Temperature |
70°C |
| No. of outputs |
1 |
| Nominal value output current 2 |
0.625A |
| Nominal value output current 3 |
0.625A |
| Nominal value output voltage 1 [DC] |
24V |
| Operating temperature (min.) |
-20°C |
| Output current (max.) - rounded |
625mA |
| Output Voltage (max.) [DC] |
29V |
| Output voltage (min.) [DC] |
21.6V |
| Power |
15W |
| Product Type |
Rail mounted PSU (DIN) |
| Type of electric connection |
Screw terminal |
| Voltage type (supply voltage) |
DPH-24015 |
| Weight |
78g |
| Width |
58mm |
