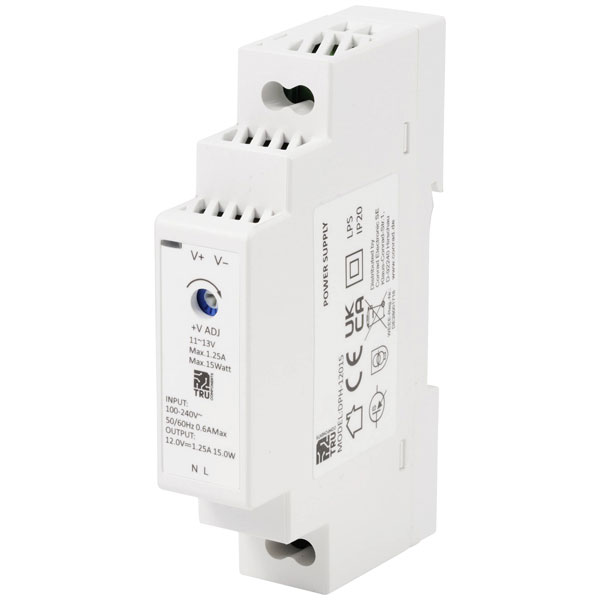

TRU COMPONENTS TC-10580800 is a rail-mounted power supply unit designed for industrial applications requiring reliable power conversion. This unit, also known as the DPH-12015, delivers a steady output of 12 V DC with a current capacity of 1.25 A, providing a total power of 15 W through a single output. Engineered to be mounted onto DIN rails, this power supply unit is ideal for integrating into control panels and automation systems where space is at a premium and efficient power distribution is essential. Its robust construction and precise electrical characteristics make it suitable for use in demanding industrial environments, ensuring stable performance in challenging conditions. The device's compact form factor and ease of installation make it a practical choice for engineers aiming to enhance system reliability and efficiency.
| Nominal value output current 1 |
1.25A |
| Number of Outputs |
1 |
| Power Rating |
15W |
| Content |
1 |
| Depth |
18mm |
| Dimensions (L x W x H) |
18 x 58 x 90mm |
| Efficiency |
85% |
| Height |
90mm |
| Input Voltage |
100-240 V AC, 50/60 Hz |
| Max. output current 1 |
1.25A |
| Maximum Operating Temperature |
70°C |
| No. of outputs |
1 |
| Nominal value output current 2 |
1.25A |
| Nominal value output current 3 |
1.25A |
| Nominal value output voltage 1 [DC] |
12V |
| Operating temperature (min.) |
-20°C |
| Output current (max.) - rounded |
1.25A |
| Output Voltage (max.) [DC] |
13.8V |
| Output voltage (min.) [DC] |
10.8V |
| Power |
15W |
| Product Type |
Rail mounted PSU (DIN) |
| Type of electric connection |
Screw terminal |
| Voltage type (supply voltage) |
DPH-12015 |
| Weight |
78g |
| Width |
58mm |
