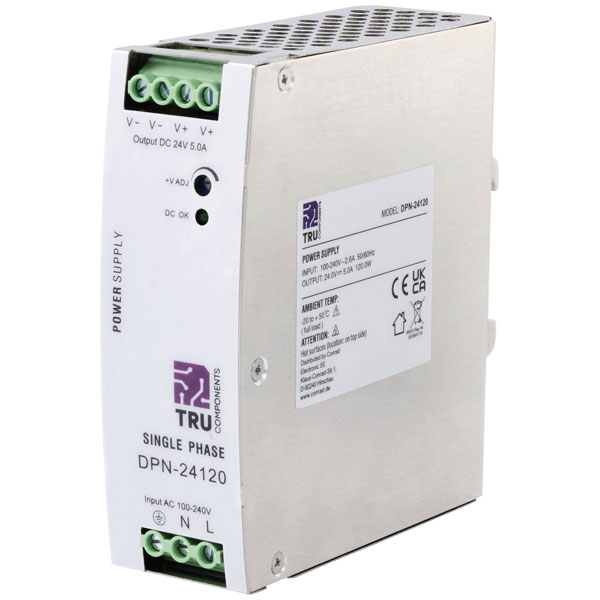

TRU COMPONENTS TC-10580792 DPN-24120 Rail mounted PSU 24V DC 5A 120W 1 output

TRU COMPONENTS TC-10580792 is a versatile DIN rail-mounted power supply unit designed for industrial applications that demand reliable and consistent power delivery. The model DPN-24120 provides a stable 24 V DC output at up to 5 A, delivering a total power capacity of 120 W through its single output. This power supply unit is well-suited for DIN rail installation, making it an ideal component for control panels, automation systems, and other industrial machinery where a dependable power source is critical. Its compact design allows for easy integration into existing systems, providing a robust power solution that ensures operational efficiency. As a reliable choice within the open and DIN power supply unit category, it offers engineers flexibility and assurance in their precise power management requirements.

Number of Outputs	1
Power Rating	120W
Content	1
Depth	40mm
Dimensions (L x W x H)	40 x 114 x 125mm
Efficiency	88%
Height	125mm
Input Voltage	100-240 V AC, 50/60 Hz
Max. output current 1	5A
Maximum Operating Temperature	70°C
No. of outputs	1
Nominal value output voltage 1 [DC]	24V
Operating temperature (min.)	-20°C
Output current (max.) - rounded	5A
Output Voltage (max.) [DC]	28V
Output voltage (min.) [DC]	24V
Power	120W
Product Type	Rail mounted PSU (DIN)
Type of electric connection	Screw terminal
Voltage type (supply voltage)	DPN-24120
Weight	600g
Width	114mm
