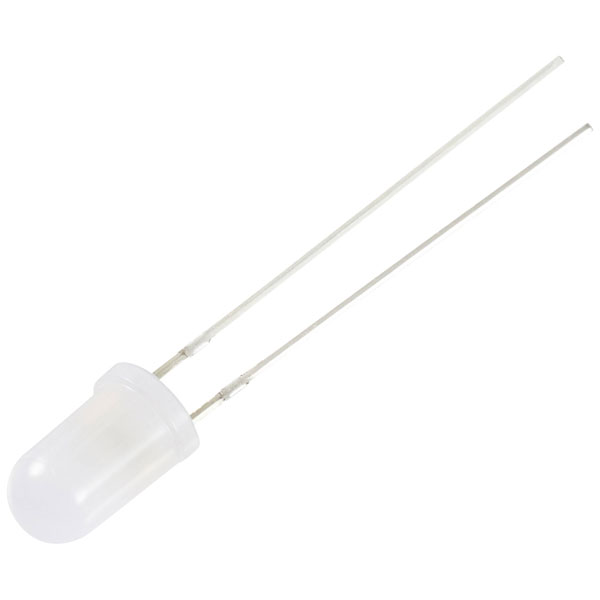

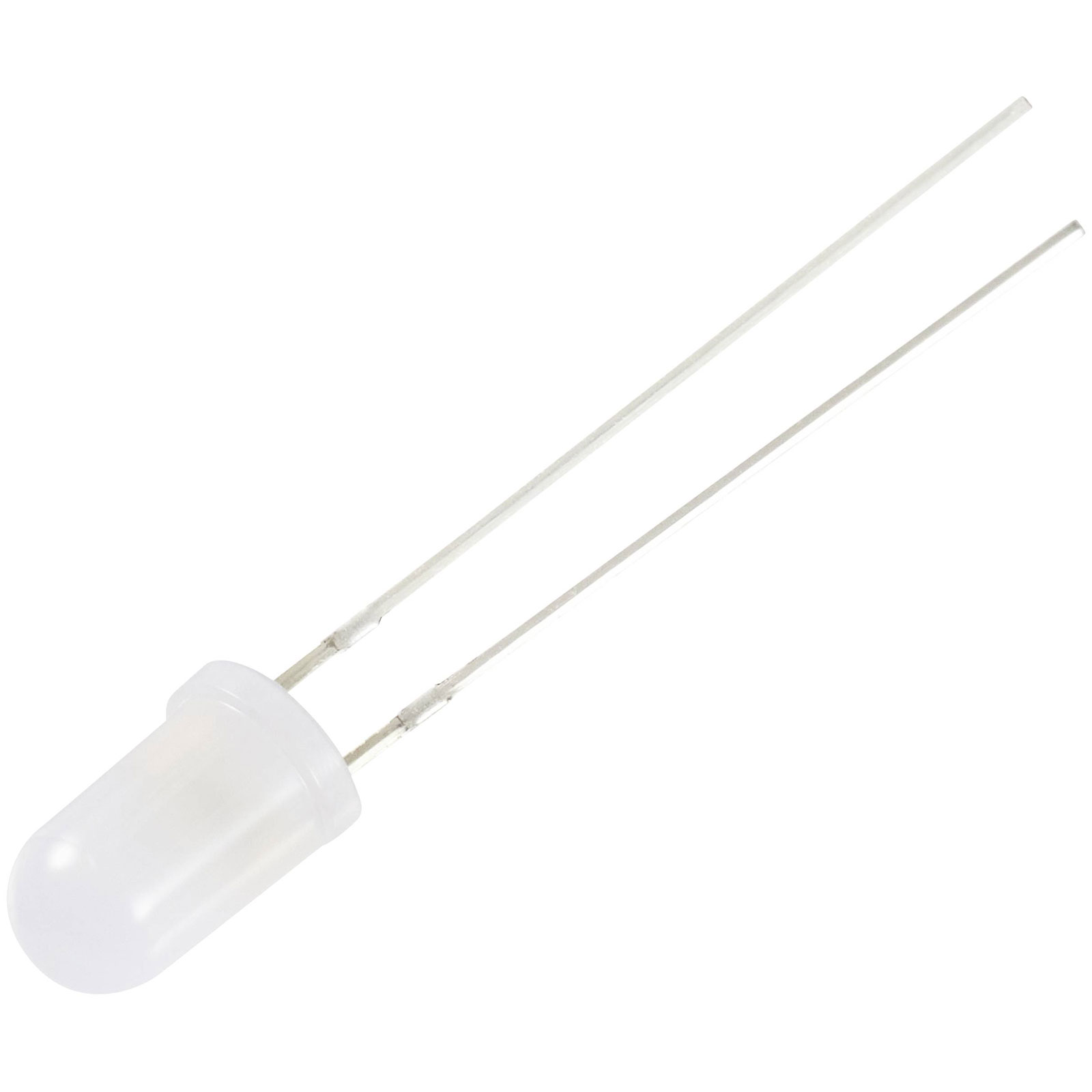

TRU COMPONENTS TC-10551796 LED Green Circular 5mm 7000mcd 15° 20mA 3.1V

TruComponents TC-10551796 is a green circular LED with a 5 mm diameter wired configuration, designed for high-efficiency performance in various lighting applications. This LED emits a luminous intensity of 7000 millicandela, with a narrow viewing angle of 15 degrees, making it suitable for focused lighting tasks. Operating at a forward current of 20 mA and a forward voltage of 3.1 V, it ensures energy-efficient functionality while maintaining high brightness. The robust design of the LED allows it to be effectively utilised in signal indicators, displays, and electronic visual effects where precise and reliable illumination is required. Its engineering suitability extends to both industrial and consumer electronic applications where compact and efficient lighting solutions are needed.

LED Colour	Green
Dominant Wavelength	525nm
Forward Current	20mA
Lens Type	Circular
Luminous Intensity	7000mcd
Forward Voltage	3.1V
Viewing Angle	15°
Casing	5mm
Content	1
Maximum Temperature	85°C
Min. temperature	-30°C
Type	LED wired
