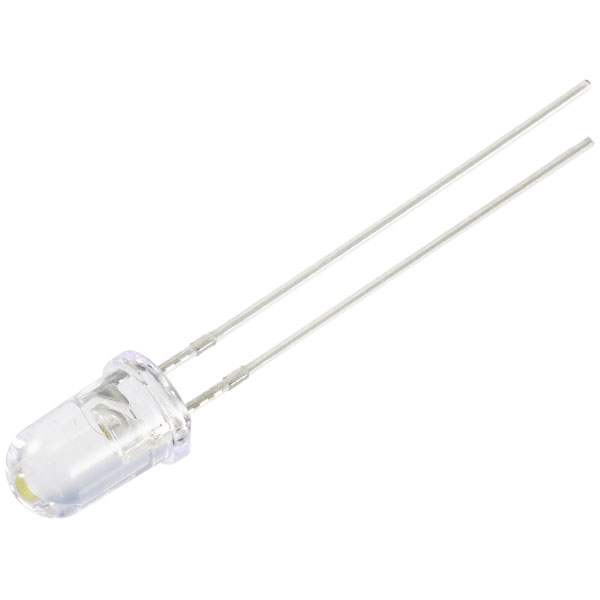

TRU COMPONENTS TC-10551708 Wired LED Blue Circular 5mm 18000 mcd 15° 30mA 2.9V

TruComponents TC-10551708 is a wired blue circular LED designed for a wide range of technical applications. This LED features a 5 mm diameter with a luminous intensity of 18000 millicandela (mcd), an emission angle of 15 degrees, and operates at a forward current of 30 milliamperes (mA) and a forward voltage of 2.9 volts. These characteristics make it suitable for use in detailed display lighting, indicator lights in electronic panels, and instrumentation backlighting. Engineers may also find it valuable in precision optical sensor systems and compact illumination projects where specific light angles and intensity are critical. Reliable and efficient, this LED stands out for its high brightness and narrow beam spread, supporting demanding applications.

LED Colour	Blue
Dominant Wavelength	470nm
Forward Current	30mA
Lens Type	Circular
Luminous Intensity	18000mcd
Forward Voltage	2.9V
Viewing Angle	15°
Casing	5 mm
Content	1
Max. temperature	85°C
Min. temperature	-30°C
