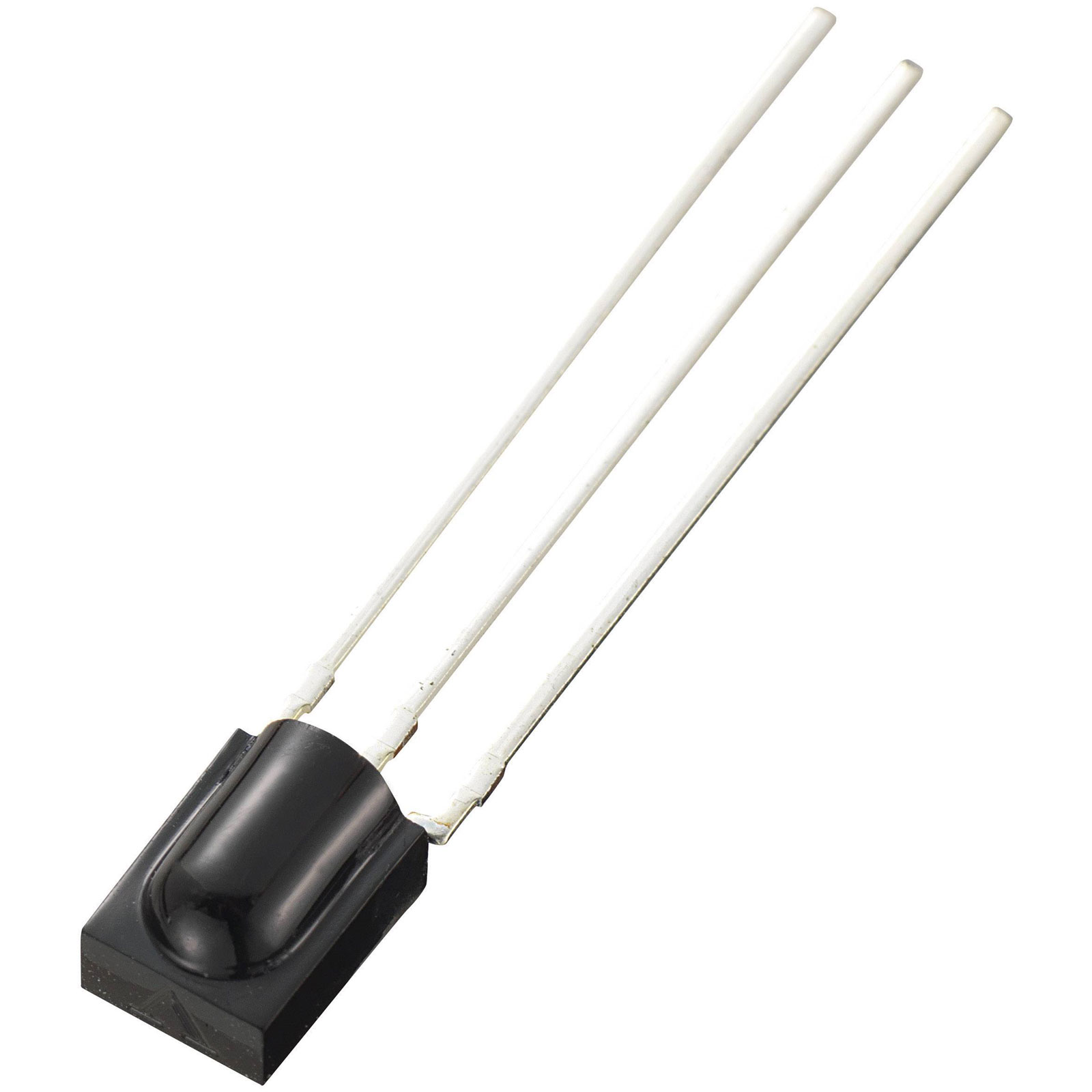

TRU COMPONENTS 184281 IR receiver Axial lead 38 kHz 940 nm 35° angle

TruComponents 184281 is an infrared receiver meticulously designed for precision in applications requiring the detection of infrared light. With its non-standard axial lead configuration, this IR receiver is optimised to function at a frequency of 38 kHz and a wavelength of 940 nm, ensuring effective performance in environments where light detection and modulation are crucial. The device features a field of view of 35 degrees, making it suitable for applications that demand a specific detection angle, such as remote control systems, security sensors, and automated lighting control. Its robust design and reliability in signal reception make it a preferred component in engineering projects that require precise IR signal demodulation.

Type	IR receiver
Operating Voltage	2.7 - 5.5 V DC
Current Consumption	0.35mA
Detection Angle	35°
Frequency	38kHz
LED features	IR filter
Max. operating voltage	5.5V DC
Max. Range	16m
Maximum Temperature	65°C
Min. operating voltage	2.7V DC
Min. temperature	-20°C
Wavelength	940nm
