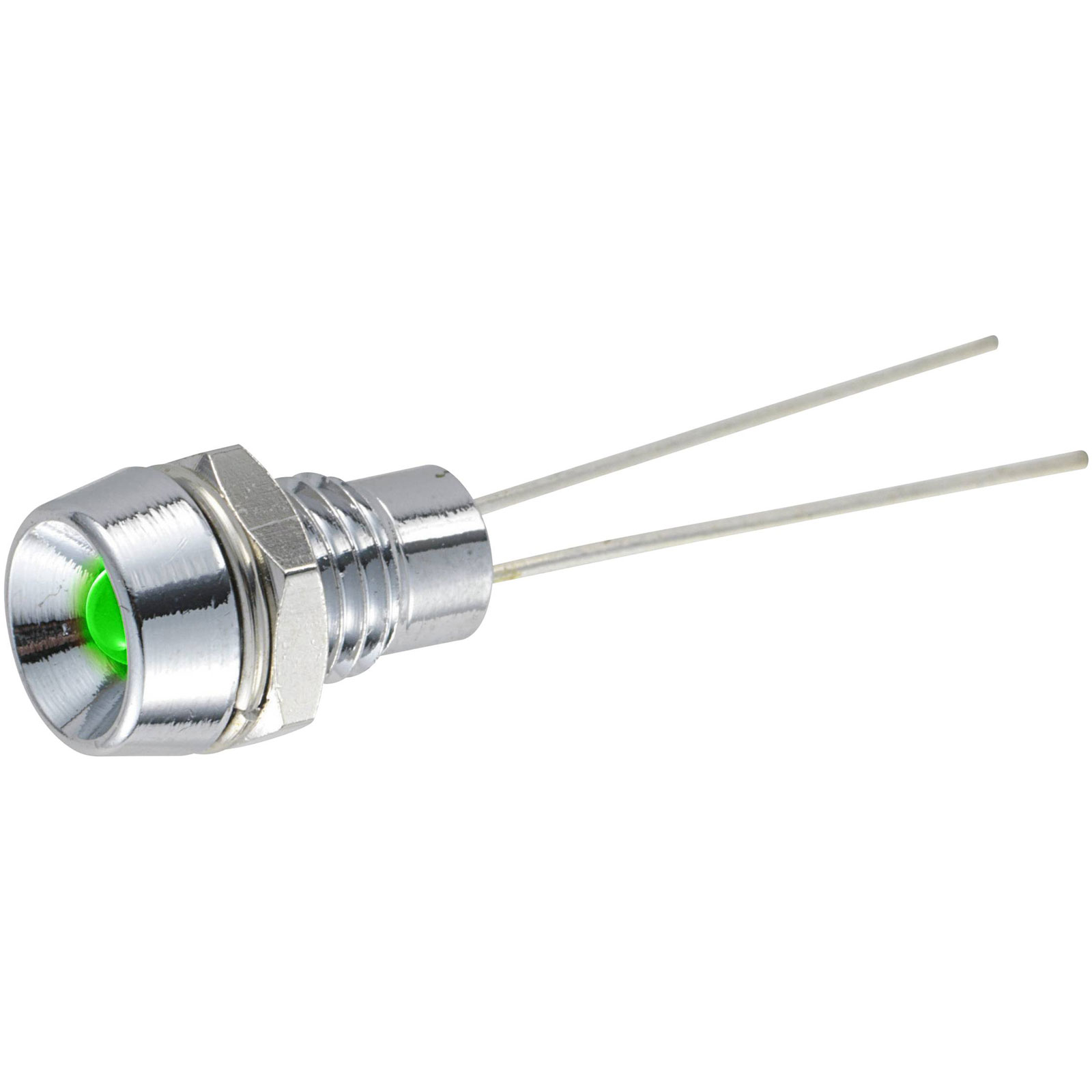

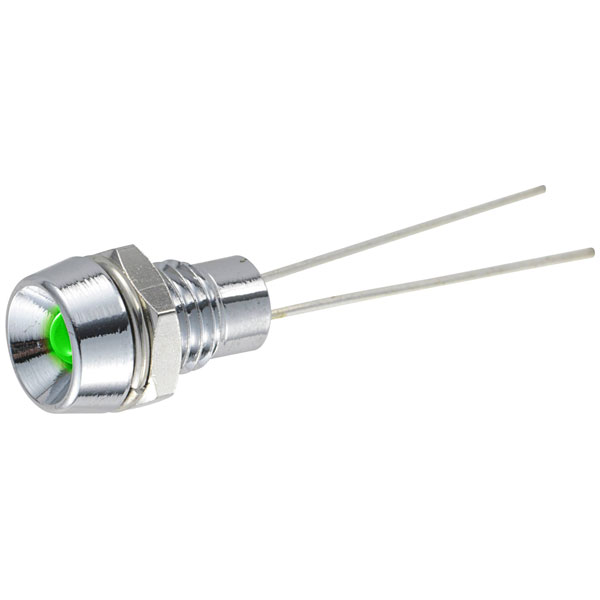

TRU COMPONENTS 1587947 LED indicator light Green 2.1 V 20 mA 45 mcd

TruComponents 1587947 offers a reliable LED indicator light, specifically designed for applications requiring a 4.8mm form factor. This green LED indicator operates at a forward voltage of 2.1 V and a forward current of 20 mA, delivering a luminous intensity of 45 millicandela. Its compact size and efficient energy consumption make it suitable for a variety of electronic applications, including power status indicators, signalling devices, and user interface displays in industrial equipment. The device's consistent performance and durable construction ensure reliable operation in environments where visual signalling is critical.

Type	TC-R9-1612, GREEN
Case Colour	Chrome
Colour	Green
Connection	Soldering
Content	1
Forward current I(F)	20mA
Forward Voltage U(F)	2.1V
Front panel thickness	max. 3.5mm
Light intensity I(V)	45mcd
Material properties	shiny
Max. temperature	85°C
Min. temperature	-25°C
Mounting Type	Screw
Product Type	LED indicator light
Radiation angle	50°
Recess diameter	6.2mm
