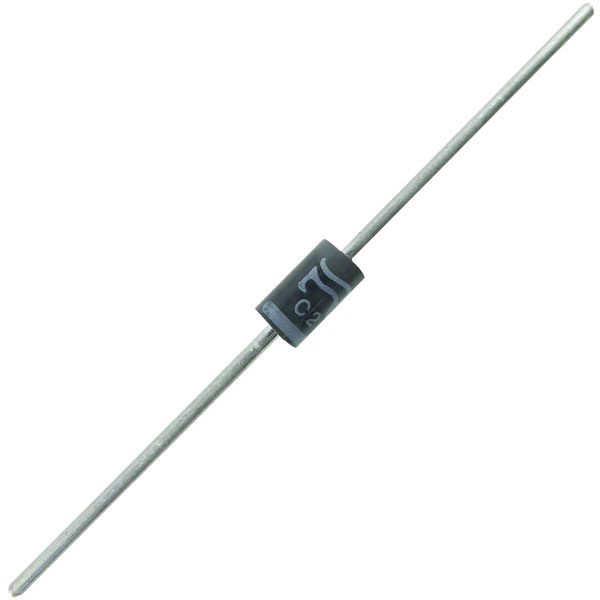

TRU COMPONENTS 1582131 Schottky rectifier 30 V Single Schottky Diodes

TRU COMPONENTS 1582131 is a Schottky rectifier diode, also designated as TC-SB330, specifically designed for applications requiring efficient rectification. This single Schottky diode features a maximum reverse voltage of 30 V and is encapsulated in a DO-201 package, ensuring compact integration into electronic circuits. Utilising a Schottky barrier, it provides lower forward voltage drop and faster switching times than conventional PN junction diodes, making it ideal for applications such as power supply circuits, polarity protection, and as a blocking diode in low voltage applications. Its performance characteristics render it suitable for use in high-frequency circuits where efficiency and thermal stability are critical considerations.

Type	TC-SB330
Configuration (diode)	Single
Content	1
Enclosure	DO 201
Forward current I(F)	3A
Forward voltage reference	3A
Forward Voltage U(F)	500mV
Mounting Type	Through-hole
Operating temperature (max.)	+150°C
Operating temperature (min.)	-50°C
Peak forward surge Current I(FSM)	150A
Product Type	Schottky rectifier
Reverse leakage Current I(r)	500µA
Reverse leakage current I(r) reference	30V
Reverse Voltage U(R)	30V
