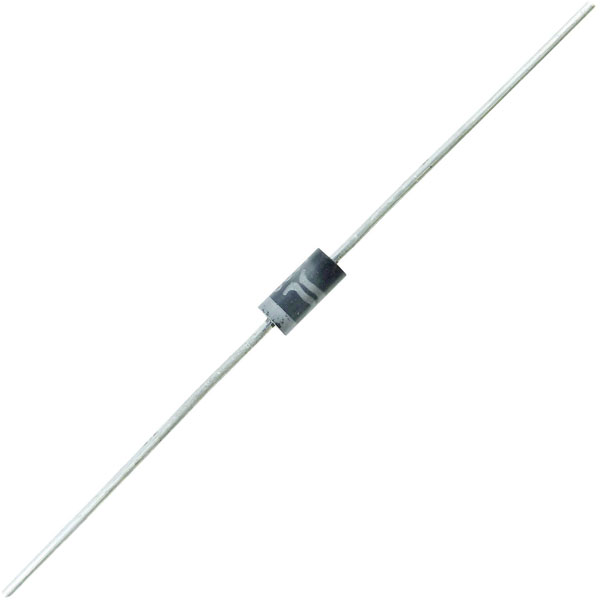

TRU COMPONENTS 1582088 Rectifier High Voltage Si 5000V 200mA DO-15

TruComponents 1582088 Rectifier is a high-voltage silicon device specifically designed to handle applications requiring up to 5000 volts and 200 milliamperes of current. Packaged in the DO-15 case, this rectifier exemplifies robust performance and reliability in high-voltage environments, making it suitable for use in power supply circuits where efficient rectification of alternating current is necessary. Engineers might employ this component in radio frequency applications, industrial power supply systems, and voltage multipliers, where stable performance under high-voltage stress is imperative. With its silicon-based construction, the 1582088 rectifier offers enhanced thermal stability and durability, ensuring consistent operation across diverse environments.

Type	TC-HV5
Enclosure	DO 15
Forward current I(F)	200mA
Forward voltage reference	200mA
Forward Voltage U(F)	6V
Maximum Operating Temperature	+150°C
Mounting Type	Through-hole
Operating temperature (min.)	-50°C
Product Type	Fast high voltage Si rectifier
Reverse leakage Current I(r)	3µA
Reverse leakage current I(r) reference	5000V
Reverse reCovery Time T(rr)	400ns
Reverse Voltage U(R)	5000V
