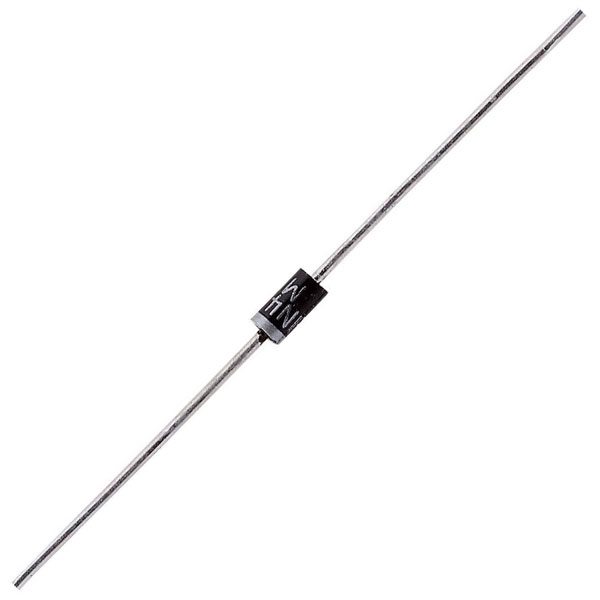

TRU COMPONENTS 1582087 Si rectifier Fast high voltage 3000V 200mA DO 41

TruComponents 1582087, known as the 1582087 - TruComponents 1582087, is a silicon rectifier featuring a fast recovery performance for high voltage applications. With a peak reverse voltage of 3000 V and a forward current of 200 mA, this rectifier is encapsulated in a DO-41 package, making it suitable for high-efficiency power conversion and rectification tasks. Its robust design ensures reliable operation in demanding environments, making it ideal for use in applications such as power supplies, electronic screens, and voltage multipliers where high voltage handling is essential. This component is particularly valued by engineers for its ability to maintain high performance while accommodating significant electrical stresses.

Type	TC-HV3
Enclosure	DO 41
Forward current I(F)	200mA
Forward voltage reference	200mA
Forward Voltage U(F)	6V
Mounting Type	Through-hole
Operating temperature (max.)	+150°C
Operating temperature (min.)	-50°C
Product Type	Fast high voltage Si rectifier
Reverse leakage Current I(r)	3µA
Reverse leakage current I(r) reference	3000V
Reverse reCovery Time T(rr)	400ns
Reverse Voltage U(R)	3000V
