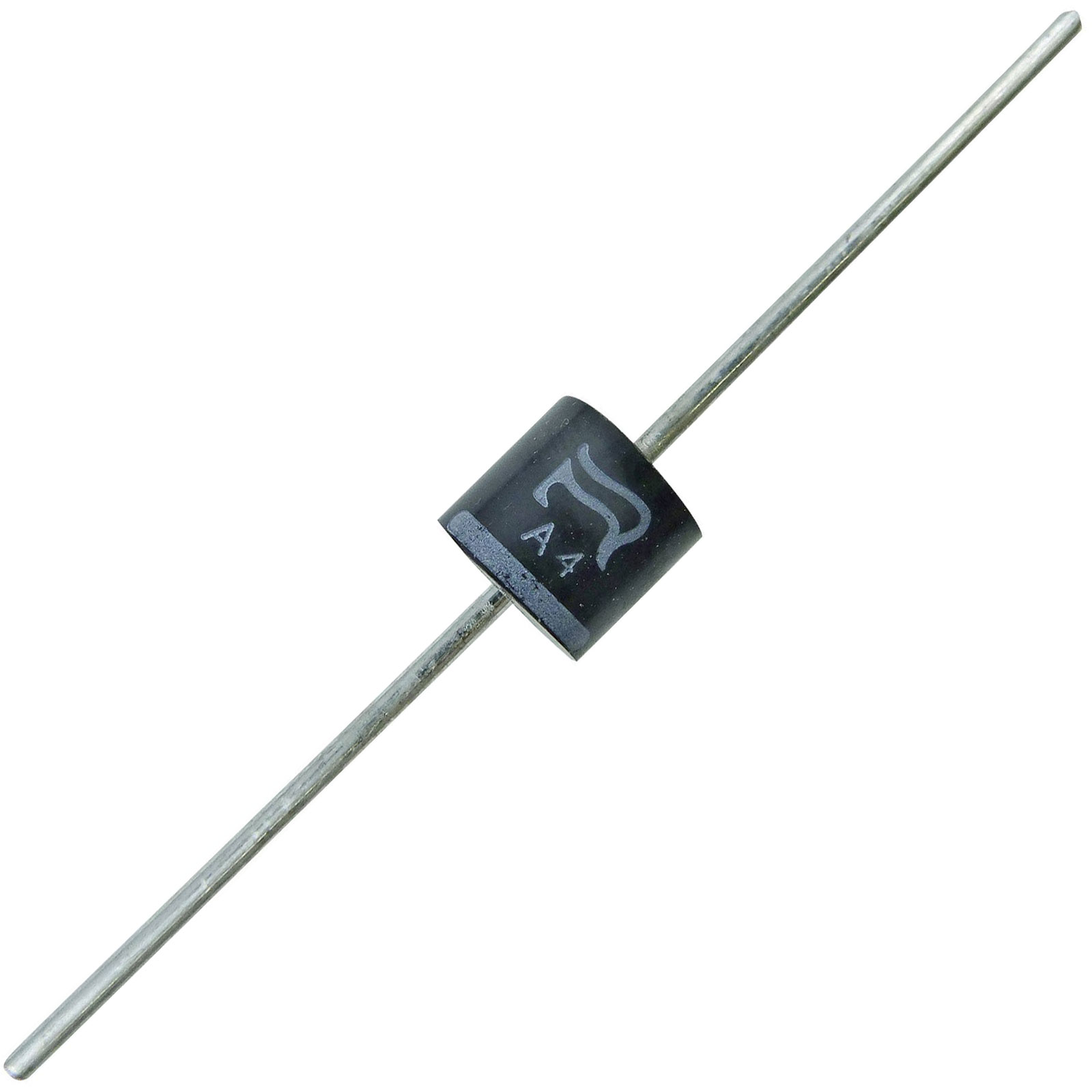

TRU COMPONENTS 1582069 Super-fast Si rectifier 100V 12A

TruComponents 1582069 is a super-fast silicon rectifier rated at 100V and 12A, designed to deliver superior performance in high-speed switching applications. The 1582069, featuring a low forward voltage drop, enhances efficiency by minimising power loss, making it an ideal choice for power supply rectification and freewheeling in diode applications. With its robust construction and reliable characteristics, this component is particularly suited for use in DC/DC converters, LED drivers, and motor drive applications, ensuring long-term durability and consistent performance in demanding environments. Its compact design also allows for ease of integration into various circuit configurations.

Type	TC-F1200B
Enclosure	P600
Forward current I(F)	12A
Forward voltage reference	12A
Forward voltage U(F)	0.91V
Mounting Type	Through-hole
Operating temperature (max.)	+150°C
Operating temperature (min.)	-50°C
Product Type	Super-fast Si rectifier
Reverse leakage Current I(r)	40µA
Reverse leakage current I(r) reference	100V
Reverse reCovery Time T(rr)	200ns
Reverse Voltage U(R)	100V
