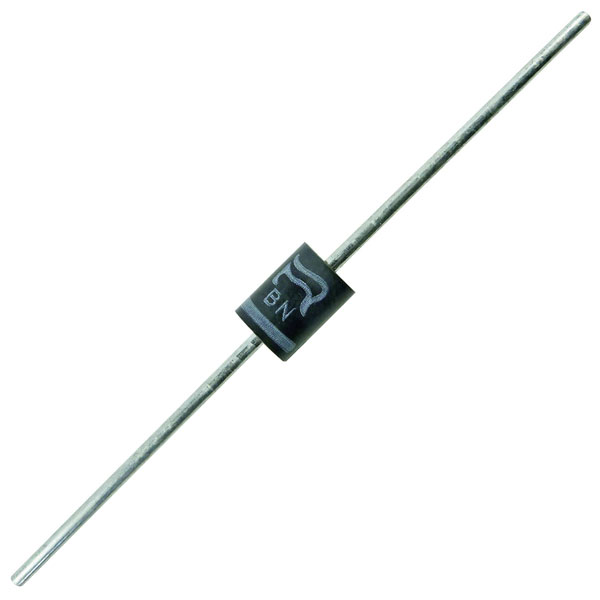

TRU COMPONENTS 1582055 TC-BY880-600 silicon rectifier 600V 8A DO201

TruComponents 1582055 is a silicon rectifier featuring a reverse voltage rating of 600 volts and a forward current capacity of 8 amperes, encapsulated in a DO201 package. This product, also known as the TC-BY880-600, is designed for efficient rectification in power conversion systems, ensuring reliable performance under varying electrical conditions. The device is well-suited for use in applications such as power supplies, motor drives, and other electrical circuits where converting alternating current to direct current is required. With its robust construction and ability to handle significant reverse voltage, the TruComponents rectifier provides engineers with a dependable component for both commercial and industrial purposes.

Type	TC-BY880-600
Enclosure	DO 201
Forward current I(F)	8A
Forward voltage reference	8A
Forward Voltage U(F)	1.1V
Maximum Operating Temperature	+175°C
Mounting Type	Through-hole
Operating temperature (min.)	-50°C
Product Type	Si rectifier
Reverse leakage Current I(r)	5µA
Reverse leakage current I(r) reference	600V
Reverse Voltage U(R)	600V
