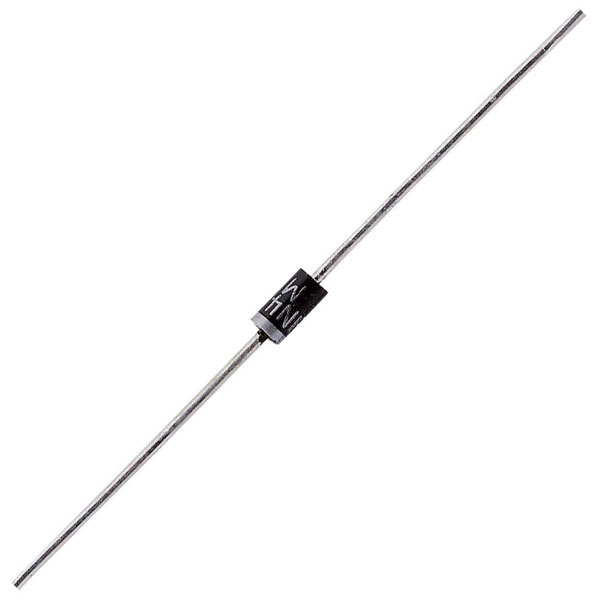

TRU COMPONENTS 1582037 Ultra-fast Si rectifier 200V 1A DO 204AL diode

TruComponents 1582037 introduces an ultra-fast silicon rectifier diode designed for efficient performance in demanding applications. With a maximum reverse voltage of 200 volts and a forward current of 1 ampere, this diode, housed in the compact DO-204AL package, offers enhanced thermal and electrical characteristics suitable for high-frequency rectification. The TruComponents 1582037 is specifically engineered to minimise recovery time, which makes it ideal for use in switching power supplies, converters, and freewheeling diodes in fast switching applications. Its robust design ensures reliability and efficiency, meeting the rigorous demands of modern electronic circuits.

Type	TC-UF4003
Enclosure	DO 204AL
Forward current I(F)	1A
Forward voltage reference	1A
Forward voltage U(F)	1V
Mounting Type	Through-hole
Operating temperature (max.)	+175°C
Operating temperature (min.)	-50°C
Product Type	Ultra-fast Si rectifier
Reverse leakage Current I(r)	50µA
Reverse leakage current I(r) reference	200V
Reverse reCovery Time T(rr)	50ns
Reverse Voltage U(R)	200V
