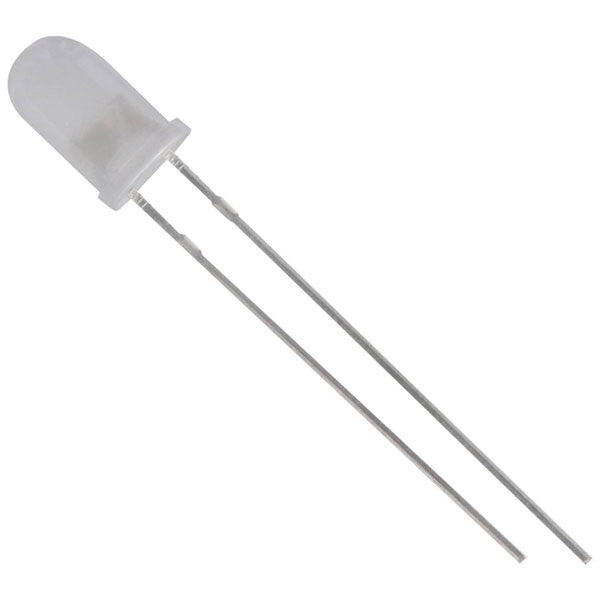

TRU COMPONENTS 1573751 LED White Circular 5mm 1800mcd 50° 20mA 3.1V Wired

TruComponents 1573751 is a wired white circular LED with a 5 mm diameter, delivering a luminous intensity of 1800 millicandelas and a viewing angle of 50 degrees. This LED operates efficiently at a forward current of 20 mA and a forward voltage of 3.1 V, making it suitable for a range of low-power applications. Its robust design allows for reliable performance in soldered or connected wired configurations, making it applicable for indicator lights, backlighting, and status signalling in both consumer electronics and industrial equipment. The precision and clarity of the white light emitted by the TruComponents LED ensure effective visual performance in circuit boards and control panels.

LED Colour	White
Forward Current	20mA
Lens Type	THT
Luminous Intensity	1800mcd
Forward Voltage	3.1V
Viewing Angle	50°
Casing	5mm
Content	1
Maximum Temperature	80°C
Min. temperature	-30°C
Type	LED wired
