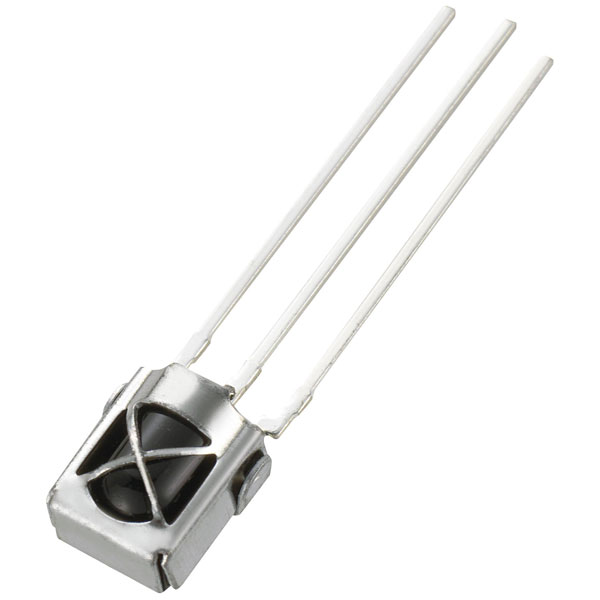

TRU COMPONENTS 1572283 IR receiver Axial lead 38 kHz 940 nm 35° Infrared

TruComponents 1572283 presents the OS-1838 IR receiver, a non-standard axial lead component designed to efficiently detect infrared signals with a central wavelength of 940 nm and an operating frequency of 38 kHz. Engineered to provide a reception angle of 35 degrees, this IR thermal sensor is adept at capturing and processing infrared light in a variety of industrial applications. Its compact design and axial lead configuration make it well-suited for integration into circuit boards where space conservation and orientation are crucial. Typical engineering applications for this IR receiver include remote control systems, proximity sensors, and wireless data transmission modules, where reliable reception of infrared signals is paramount. Professionals in electronics and automation fields will find the OS-1838 an optimal choice for projects requiring precise infrared signal processing.

Type	IR receiver
Operating Voltage	2.7 - 5.5 V DC
Current Consumption	0.35mA
Detection Angle	35°
Frequency	38kHz
LED features	IR filter
Max. operating voltage	5.5V DC
Max. Range	16m
Maximum Temperature	65°C
Min. operating voltage	2.7V DC
Min. temperature	-20°C
Wavelength	940nm
