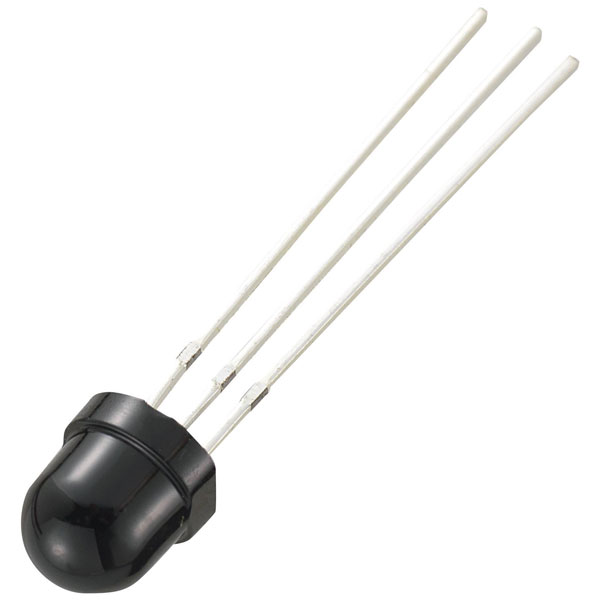

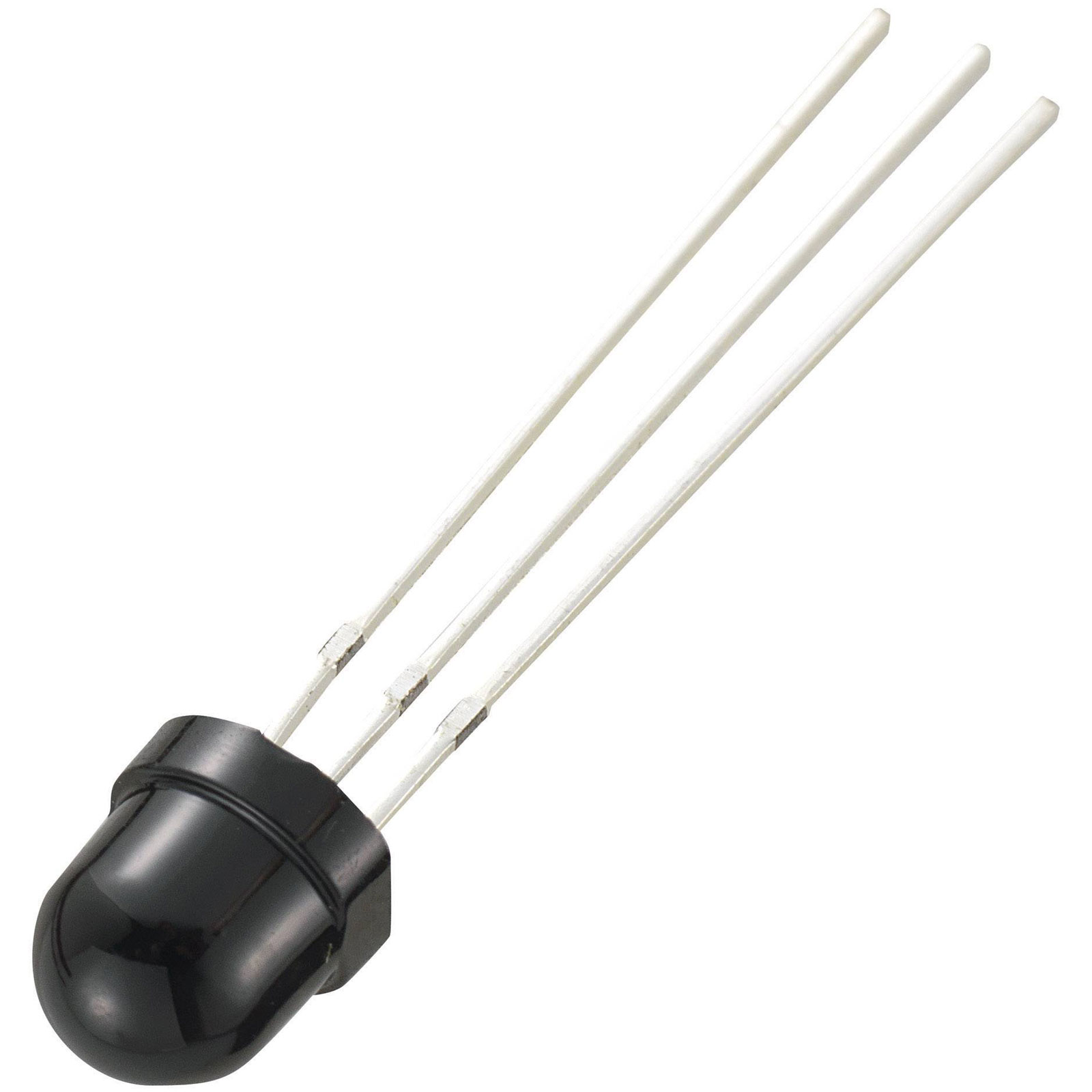

TRU COMPONENTS 1567234 OS -0038 N IR receiver 38 kHz 5.8 mm 940 nm 35 °

TruComponents 1567234, with the manufacturer's part number OS-0038 N, is an infrared receiver designed for non-standard applications with axial leads. Operating at a modulation frequency of 38 kHz, this IR thermal sensor is equipped to detect infrared light within the wavelength of 940 nm. The receiver's compact size, measuring 5.8 mm, allows for usage in space-constrained environments where precision in infrared detection is required. The device features a reception angle of 35 degrees, making it suitable for applications such as remote control systems, automated lighting solutions, and infrared data transmission systems. With its robust design, it provides reliable performance in engineering systems where standard infrared sensing components might not suffice.

Type	IR receiver
Operating Voltage	2.7 - 5.5 V DC
Casing	5.8mm
Current Consumption	0.35mA
Detection Angle	35°
Frequency	38kHz
LED features	IR filter
Max. operating voltage	5.5V DC
Max. Range	15m
Maximum Temperature	65°C
Min. operating voltage	2.7V DC
Min. temperature	-20°C
Wavelength	940nm
