TracoPower TXLN 200-105 PSU Module 5V DC 40A 200W With Enclosure

TracoPower
Standard range
Order Code:

07-8447

Brand: TracoPower MPN: TXLN 200-105
Qty Unit Price (Ex VAT)
1+ £75.96
5+ £73.69
10+ £71.41
25+ £68.38
50+ £65.33
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

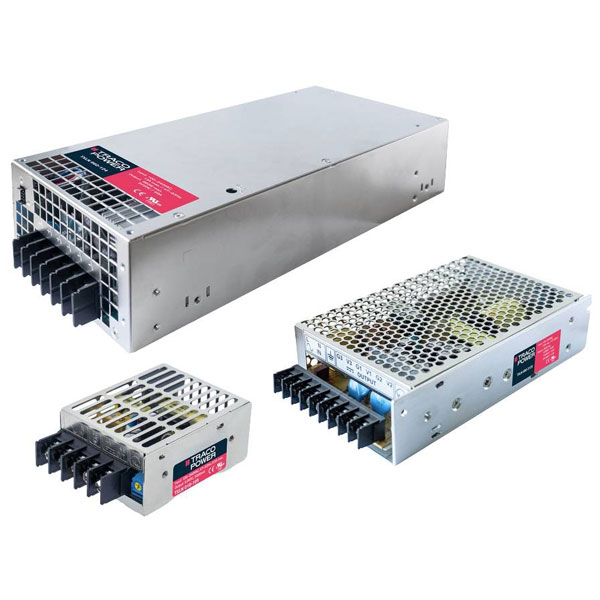

The TracoPower TXLN 200-105 is an AC/DC PSU module mounted on a PCB, offering a 5 V DC output with a substantial 40 A current and 200 W power capability. This power supply unit is enclosed and equipped with solder lugs for easy PCB mounting, highlighting its practical design. It's ideal for applications requiring reliable and robust power delivery, such as industrial or electronic systems demanding substantial current support.
Type AC/DC PSU module (+ enclosure)
Connection Screw terminal
Dim (L x W x H) 222.2 x 115.0 x 30.0 mm
Height 30.0mm
Input voltage (max.) 264V AC
Length 222.2mm
Max. operating temperature (derating) 50°C
Max. output current 40A
Min. input voltage 85V AC
Misc Attribute 1 TXLN 200-105
Misc Attribute 2 closed
MTBF 177300h
No. of outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -20°C
Output current (max.) - rounded 40A
Output current (min.) 0mA
Output voltage (max.) 5V DC
Output voltage (min.) 5V DC
PFC Yes
Power 200W
Weight 770g
Width 115.0mm
