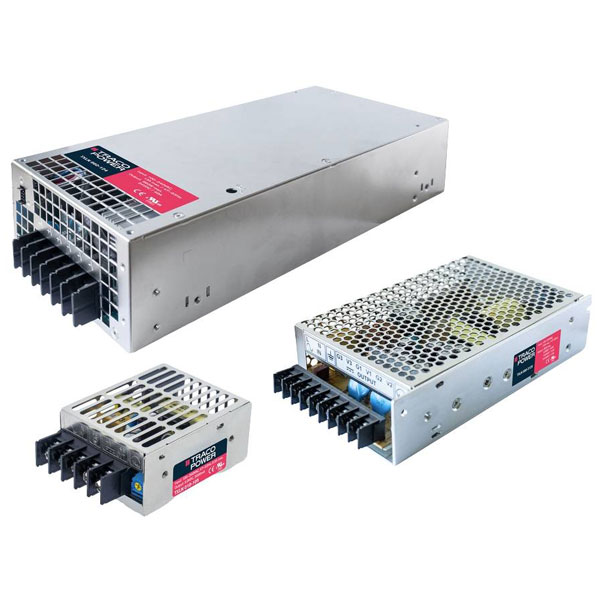

TracoPower TXLN 110-124 PSU Module 24V DC 4.6A 110W Enclosed

TracoPower
Order Code:

07-8444

Brand: TracoPower MPN: TXLN 110-124
Qty Unit Price (Ex VAT)
1+ £49.90
5+ £48.41
10+ £46.91
25+ £44.91
50+ £42.91
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 28/12/2025

The TracoPower TXLN 110-124 AC/DC PSU module is a 110 W power supply that delivers 24 V DC at 4.6 A. It is designed for PCB mounting and features solder lugs for easy integration. This module is typically used in industrial and commercial electronic applications requiring reliable power conversion.
Connection Screw terminal
Dim (L x W x H) 159.0 x 95.0 x 38.0 mm
Height 38.0mm
Input voltage (max.) 264V AC
Length 159.0mm
Max. operating temperature (derating) 50°C
Max. output current 4.6A
Min. input voltage 88V AC
Misc Attribute 2 closed
MTBF 284000h
Number of Outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -20°C
Output current (max.) - rounded 4.6A
Output current (min.) 0mA
Output voltage (max.) 24V DC
Output voltage (min.) 24V DC
PFC Yes
Power 110W
Type AC/DC PSU module (+ enclosure)
Width 95.0mm
