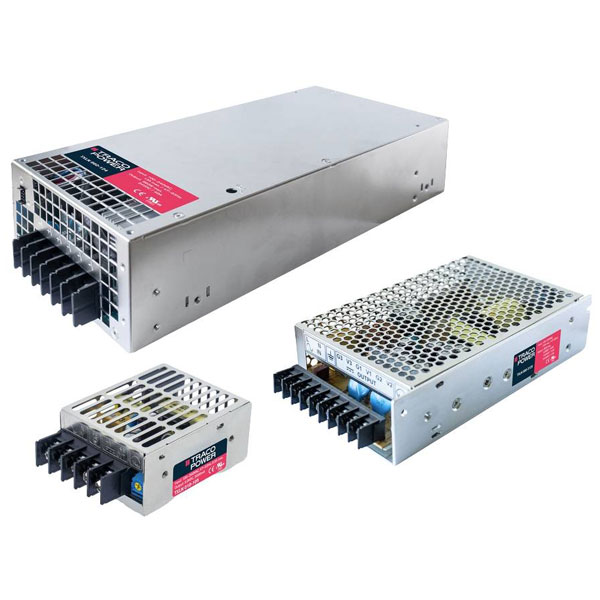

TracoPower TXLN 060-105 AC/DC PSU Module 5V DC 10A 50W Enclosure

TracoPower
Order Code:

07-8439

Brand: TracoPower MPN: TXLN 060-105
Qty Unit Price (Ex VAT)
1+ £39.68
5+ £38.49
10+ £37.29
25+ £35.71
50+ £34.12
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 28/12/2025

The TracoPower TXLN 060-105 is a 50 W AC/DC PSU module with an output of 5 V DC and a current of 10 A. This PCB mount power supply unit features solder lugs for secure connections. It is commonly used in various electronic applications, including industrial and consumer devices.
Connection Screw terminal
Dim (L x W x H) 110.8 x 82.0 x 28.0 mm
Height 28.0mm
Input voltage (max.) 264V AC
Length 110.8mm
Max. operating temperature (derating) 50°C
Max. output current 10A
Min. input voltage 88V AC
Misc Attribute 2 closed
MTBF 335000h
Number of Outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -20°C
Output current (max.) - rounded 10A
Output current (min.) 0mA
Output voltage (max.) 5V DC
Output voltage (min.) 5V DC
PFC No
Power 50W
Type AC/DC PSU module (+ enclosure)
Width 82.0mm
