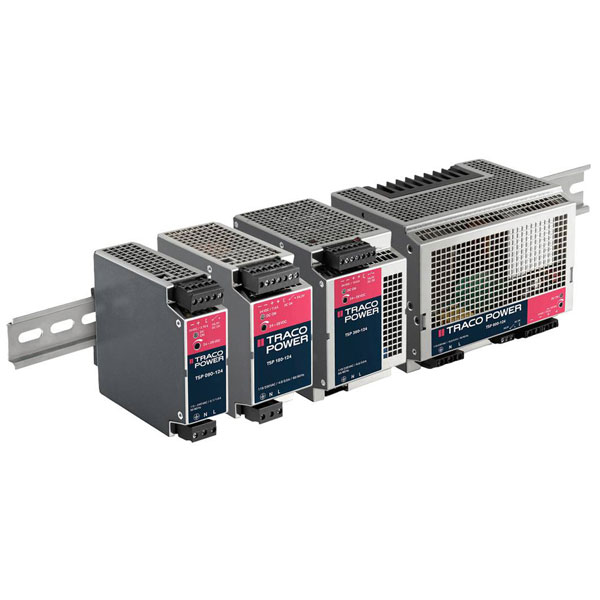

TracoPower TSP 090-124N Rail-Mounted PSU DIN 3750mA 90W 1 Output

The TracoPower TSP 090-124N is a rail-mounted PSU (DIN) with a single 90 W output delivering 3750 mA. It is an industrial power supply unit designed for reliable performance in harsh environments. Typical applications include providing consistent power to industrial devices and control systems.

Type	Rail mounted PSU (DIN)
Nominal value output current 1	3.75A
Number of Outputs	1
Power Rating	90W
Depth	115.0mm
Dimensions (L x W x H)	115.0 x 35.0 x 110.0mm
Height	110.0mm
Max. output current 1	3750mA
Maximum input voltage [AC]	264V
Maximum Operating Temperature	70°C
Maximum Temperature	70°C
Min. operating temperature (derating)	40°C
Min. temperature	-25°C
Minimum Input Voltage [AC]	85V
Nominal value output voltage 1 [DC]	+24.0V
Operating temperature (min.)	-25°C
Type of electric connection	Screw terminal
Weight	500g
Width	35.0mm
