TracoPower TIB 240-148EX Rail PSU DIN +48V DC 5000mA 240W 1 Output

TracoPower
Standard range
Order Code:

07-8240

Brand: TracoPower MPN: TIB 240-148EX
Qty Was Unit Price (Ex VAT)
1+ £166.30   £148.40
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

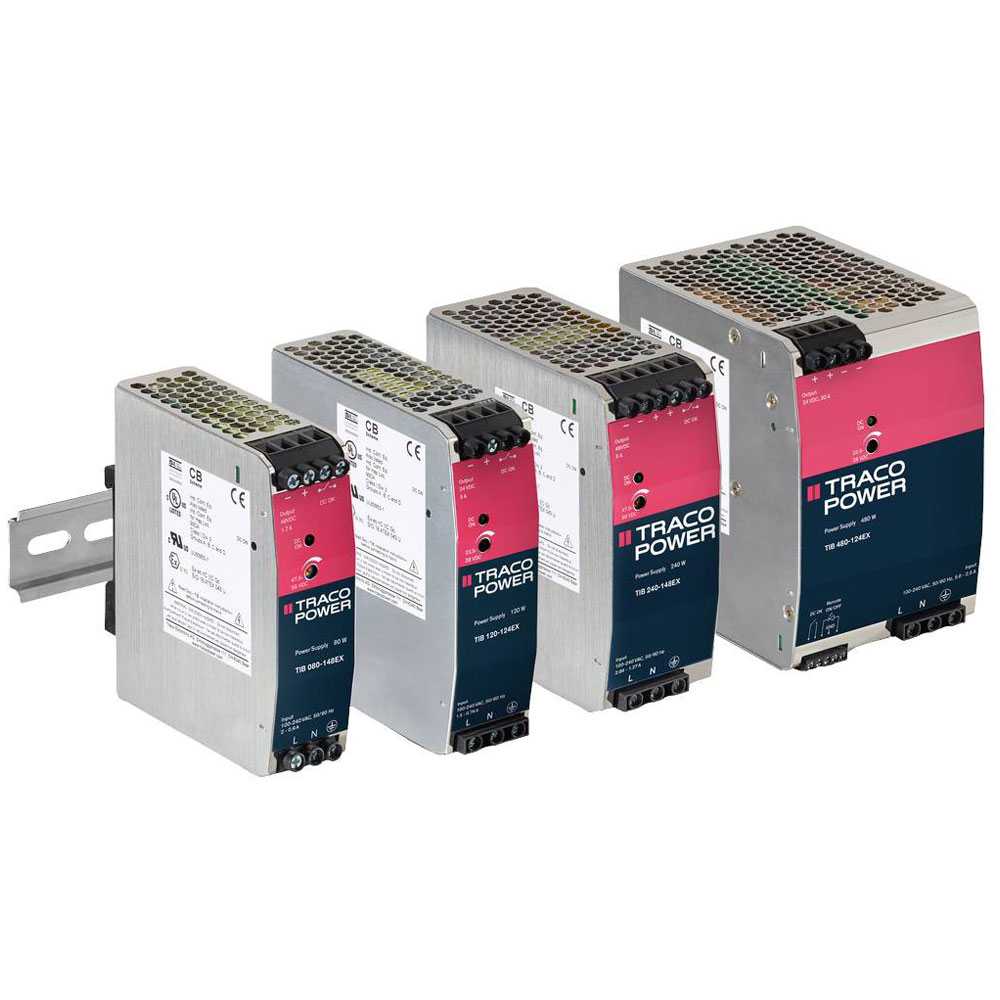

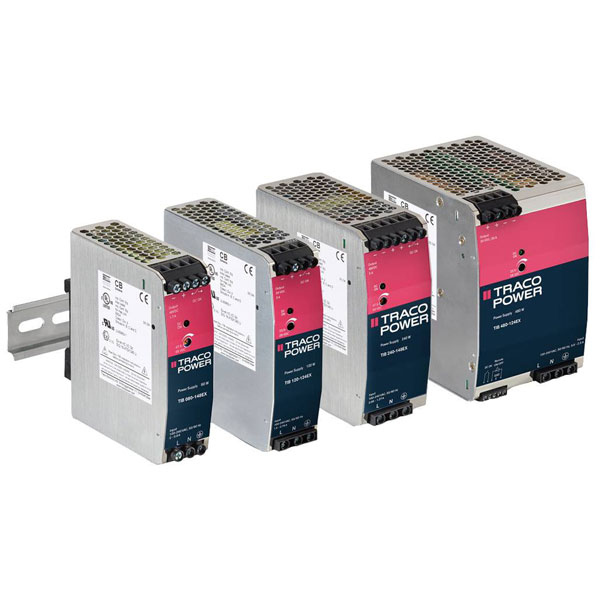

The TracoPower TIB 240-148EX is a rail-mounted power supply unit providing a +48.0 V DC output at 5000 mA, offering 240 W of power with one output. This industrial power supply is designed for DIN rail mounting, making it ideal for efficient incorporation into control panels and machinery. It is commonly used in applications requiring reliable power delivery in industrial and factory settings.
Type Rail mounted PSU (DIN)
Connection Screw terminal
Dim (L x W x H) 118.6 x 48.0 x 124.2 mm
Height 124.2mm
Input voltage 100 - 240V AC
Input voltage (max.) 264V AC
Inputs 1 x
Length 118.6mm
Manufacturer part # TIB 240-148EX
Max. output current 5000mA
Max. temperature 70°C
Min. input voltage 85V AC
Min. operating temperature (derating) 60°C
Min. temperature -40°C
Misc Attribute TIB 240-148EX
No. of outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 5A
Output voltage +48.0V DC
Output voltage (max.) +56.0V DC
Output voltage (min.) +47.0V DC
Output voltage (nominal) +48.0V DC
Phases 1
Power 240W
Weight 643g
Width 48.0mm
