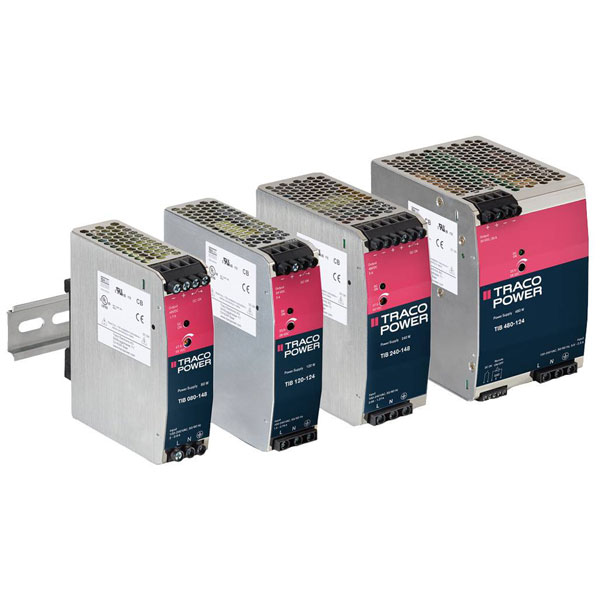

TracoPower TIB 240-148 DIN Rail PSU +48V DC 5000mA 240W 1 Output

TracoPower
Order Code:

07-8239

Brand: TracoPower MPN: TIB 240-148
Qty Unit Price (Ex VAT)
1+ £128.11
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 28/12/2025

The TracoPower TIB 240-148 is a rail mounted PSU (DIN) delivering +48.0 V DC at 5000 mA with a total output of 240 W. This industrial power supply unit is suitable for use in various industrial applications requiring stable and reliable power. Its design is compact and efficient, ideal for integration into DIN rail systems.
Type Rail mounted PSU (DIN)
Output Voltage +48.0V DC
Connection Screw terminal
Dim (L x W x H) 118.6 x 48.0 x 124.2 mm
Height 124.2mm
Input Voltage 100 - 240V AC
Input voltage (max.) 264V AC
Inputs 1 x
Length 118.6mm
Max. output current 5000mA
Max. temperature 70°C
Min. input voltage 85V AC
Min. operating temperature (derating) 60°C
Min. temperature -40°C
Number of Outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 5A
Output voltage (max.) +56.0V DC
Output voltage (min.) +47.0V DC
Output voltage (nominal) +48.0V DC
Phases 1
Power 240W
Width 48.0mm
