TracoPower TIB 120-148 Rail PSU +48V DC 2500mA 120W DIN Rail 1 Output

TracoPower
Order Code:

07-8235

Brand: TracoPower MPN: TIB 120-148
Qty Unit Price (Ex VAT)
1+ £109.15
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 28/12/2025

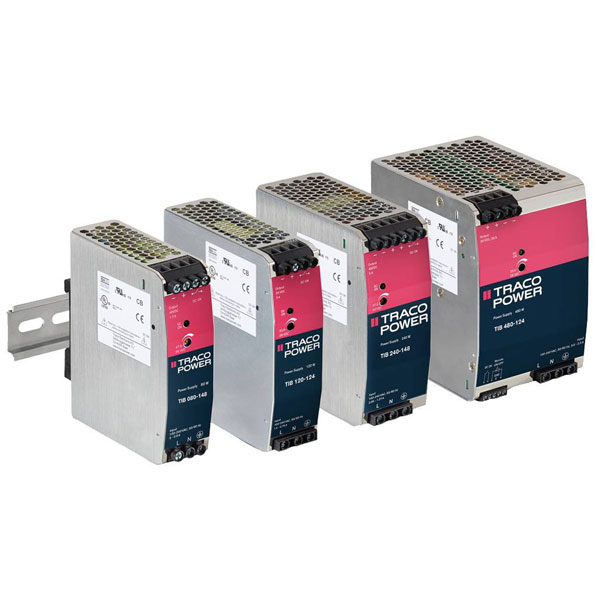

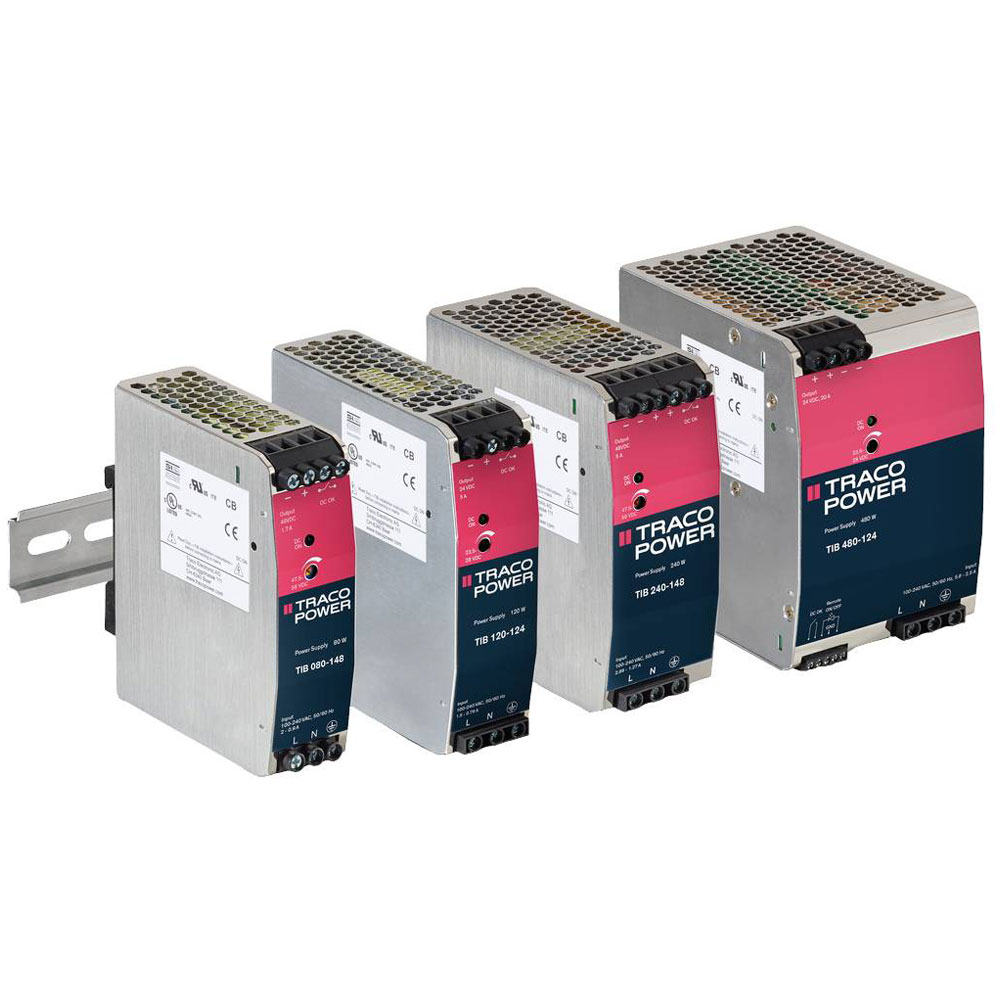

The TracoPower TIB 120-148 is a rail-mounted PSU delivering 48.0 V DC at 2500 mA with a total power output of 120 W. This robust industrial power supply unit is suitable for DIN rail mounting, making it ideal for use in automation and control systems. With reliable single-output performance, it is widely employed in various industrial applications.
Type Rail mounted PSU (DIN)
Output Voltage +48.0V DC
Connection Screw terminal
Dim (L x W x H) 118.6 x 36.0 x 124.2 mm
Height 124.2mm
Input Voltage 100 - 240V AC
Input voltage (max.) 264V AC
Inputs 1 x
Length 118.6mm
Max. output current 2500mA
Max. temperature 70°C
Min. input voltage 85V AC
Min. operating temperature (derating) 60°C
Min. temperature -40°C
Number of Outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 2.5A
Output voltage (max.) +56.0V DC
Output voltage (min.) +47.0V DC
Output voltage (nominal) +48.0V DC
Phases 1
Power 120W
Width 36.0mm
