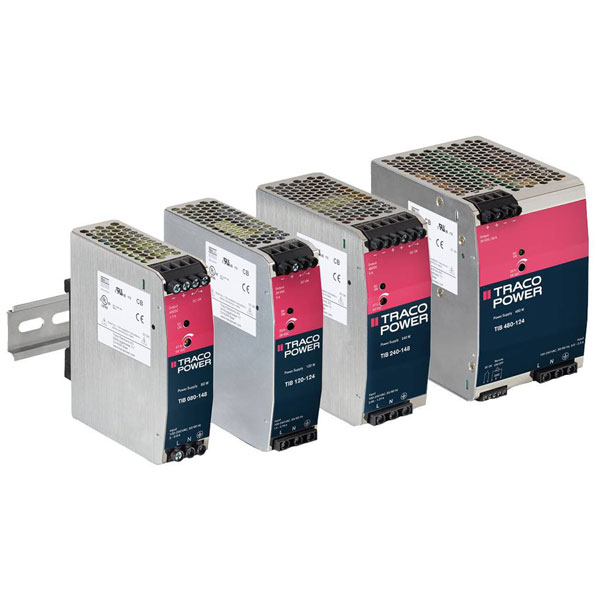

TracoPower TIB 080-112 Rail PSU 12V DC 6700mA 80W 1 Output DIN Mount

TracoPower
Order Code:

07-8229

Brand: TracoPower MPN: TIB 080-112
Qty Unit Price (Ex VAT)
1+ £87.04
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 14/12/2025

The TracoPower TIB 080-112 is a rail-mounted PSU delivering 12.0 V DC at 6700 mA with an 80 W output. This industrial power supply unit features a single output and is ideal for integration into DIN rail systems. It is typically used in industrial environments requiring reliable and efficient power distribution.
Type Rail mounted PSU (DIN)
Output Voltage +12.0V DC
Connection Screw terminal
Dim (L x W x H) 98.6 x 32.0 x 114.2 mm
Height 114.2mm
Input Voltage 100 - 240V AC
Input voltage (max.) 264V AC
Inputs 1 x
Length 98.6mm
Max. output current 6700mA
Max. temperature 70°C
Min. input voltage 85V AC
Min. operating temperature (derating) 60°C
Min. temperature -40°C
Number of Outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 6.7A
Output voltage (max.) +15.0V DC
Output voltage (min.) +11.8V DC
Output voltage (nominal) +12.0V DC
Phases 1
Power 80W
Width 32.0mm
