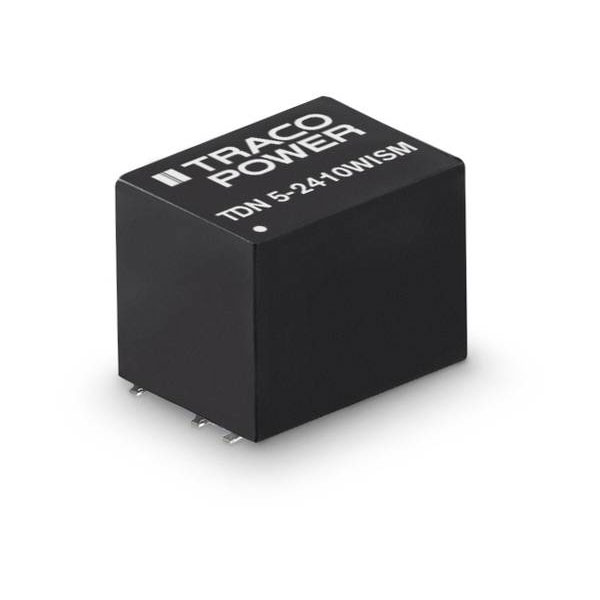

TracoPower TDN 5-0923WISM DC/DC converter SMD 168mA 5W 2 outputs

TracoPower TDN 5-0923WISM is a surface-mount device (SMD) DC-DC converter designed for efficient power management applications requiring a dependable conversion between DC power levels. With a maximum power output of 5 watts and an output current of 168 mA, this converter features dual outputs, making it suitable for systems that necessitate multiple voltage levels from a single input source. It is particularly compatible with compact electronic devices where space efficiency is critical and where the reliability of direct current conversion is paramount. Common applications include usage in industrial control systems, telecommunications equipment, and automated test setups. The TDN 5-0923WISM adheres to stringent quality standards, ensuring a robust performance in diverse engineering environments.

Power Rating	5W
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 14.20 x 9.10 x 10.20 mm
Efficiency (max.)	83%
Height	10.20mm
Input voltage (max.)	13.20V DC
Insulation Voltage	1600V DC
Length	14.20mm
Max. output current	168mA
Min. input voltage	4.5V DC
No. of outputs	2
Operating temperature (max.)	75°C
Operating temperature (min.)	-40°C
Output current (max.) - rounded	168mA
Power	5W
Product Type	DC/DC converter (SMD)
Type	TDN 5WISM
Weight	2.70g
Width	9.10mm
