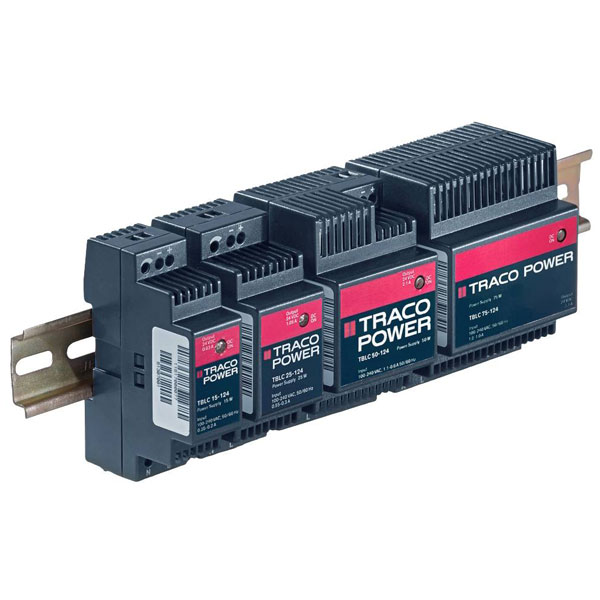

TracoPower TBLC 15-124 SMPSU 28V DC 0.63A 15W DIN-Rail Mount

TracoPower
Order Code:

07-8120

Brand: TracoPower MPN: TBLC 15-124
Qty Unit Price (Ex VAT)
1+ £44.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 14/12/2025

The TracoPower TBLC 15-124 is a 15 W printed circuit board power supply unit offering 28 V DC output at 0.63 A. It is designed for PCB mounting with solder lugs, making it suitable for various electronic applications. This SMPSU is ideal for equipping circuit boards in industrial and commercial environments where a compact and reliable power source is required.
Connection Screw terminal
Dim (L x W x H) 59.5 x 27 x 89.5 mm
Height 89.5mm
Input voltage (max.) 264V AC
Length 59.5mm
Max. operating temperature (derating) 55°C
Max. output current 0.63A
Min. input voltage 85V AC
Misc Attribute 2 closed
Number of Outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 630mA
Output current (min.) 0mA
Output voltage (max.) 28V DC
Output voltage (min.) 24V DC
Power 15W
Type SMPSU
Width 27mm
