Toolcraft 1365635 Quick Change Crimp Tool Kit 225mm 439pc

Toolcraft
Order Code:

64-6891

Brand: Toolcraft MPN: 1365635 EAN-13: 4016138986426
Qty Unit Price (Ex VAT)
1+ £108.51
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderPlease contact us for lead time

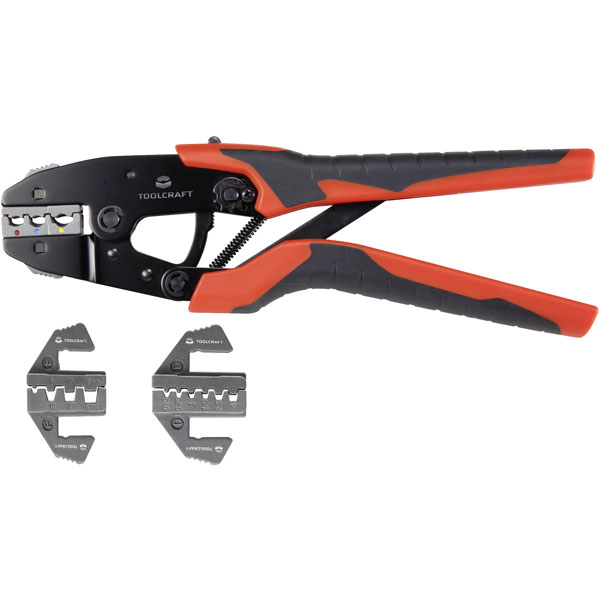

This 439-piece industry grade crimp tool kit features quick-release interchangeable jaws that require no tools. Ideal for use with a wide range of cable lugs, ring terminals, blade terminals, blade terminal receptacles, and butt connectors.


  • Interchangeable jaws require no tools
  • Anti-slip handles
  • Ratchet mechanism
  • Adjustable crimping pressure (via dial and locking screw)
  • Unlock mechanism (in case of incorrect operation)
  • Includes cable lugs, blade terminals, spade terminal receptacles, butt connectors and ferrules
  • 10-Year manufacturer's warranty

Includes 3 interchangeable jaws
A jawsfor insulated cable lugs, butt connectors and blade terminals sized 0.5mm² - 1.0/1.5mm² - 2.5mm²/4.0mm² - 6.0mm² (AWG 22-18/16 - 14/12 - 10)
D jawsfor ferrules sized 0.5mm²/0.75mm²/1.0mm²/1.5mm²/2.5mm²/4.0mm² (AWG 22/20/18/16/14/12)
F jawsfor ferrules sized 6.0mm²/10mm²/16.0mm² (AWG 10/8.0/6.0)

Kit contains:
Crimper
Jaws for insulated crimp connectors
Jaws for small-size insulated ferrules
Jaws for large-size insulated ferrules
15xFerrule, 0.5 mm²/L: 8mm (orange)
15xFerrule, 0.75 mm²/L: 8mm (white)
15xFerrule, 1 mm²/L: 8mm (yellow)
15xFerrule, 1.5 mm²/L :8mm (red)
15xFerrule, 2.5 mm²/L: 8mm (blue)
15xFerrule, 4 mm²/L:10mm (gray)
15xFerrule, 6 mm²/L:12mm (black)
15xFerrule, 10 mm²/L: 12mm (ivory)
15xFerrule, 16 mm²/L: 12mm (green)
15xSpade terminal #8, 0.5 - 1.5mm²/22 - 16 AWG (red)
15xSpade terminal #10, 1.5 - 2.5mm²/16 - 14 AWG (blue)
15xSpade terminal # 1/4, 4 - 6mm²/12 - 10 AWG (yellow)
15xRing terminal #6, 0.5 - 1.5mm²/22 - 16 AWG (red)
15xRing terminal #8, 0.5 - 1.5mm²/22 - 16 AWG (red)
15xRing terminal #8, 1.5 - 2.5mm²/16 - 14 AWG (blue)
15xRing terminal #10, 1.5 - 2.5mm²/16 - 14 AWG (blue)
15xRing terminal # 1/4, 4 - 6mm²/12 - 10 AWG (yellow)
15xRing terminal # 5/16, 4 - 6mm²/12 - 10 AWG (yellow)
15xButt connector, 0.5 - 1.5mm²/22 - 16 AWG (red)
15xButt connector, 1.5 - 2.5mm²/16 - 14 AWG (blue)
15xButt connector, 4 - 6mm²/12 - 10 AWG (yellow)
15xBlade terminal, 0.5 - 1.5mm²/22 - 16 AWG (red)
15xBlade terminal, 1.5 - 2.5mm²/16 - 14 AWG (blue)
15xBlade terminal, 4 - 6mm²/12 - 10 AWG (yellow)
15xBlade terminal receptacle, 0.5 - 1.5mm²/22 - 16 AWG (red)
15xBlade terminal receptacle, 1.5 - 2.5mm²/16 - 14 AWG (blue)
15xBlade terminal receptacle, 4 - 6mm²/12 - 10 AWG (yellow)
15xBlade terminal adapter, 0.5 - 1.5mm²/22 - 16 AWG (red)
15xBlade terminal adapter, 1.5 - 2.5mm²/16 - 14 AWG (blue)
Hard case

Type Crimp tool kit
