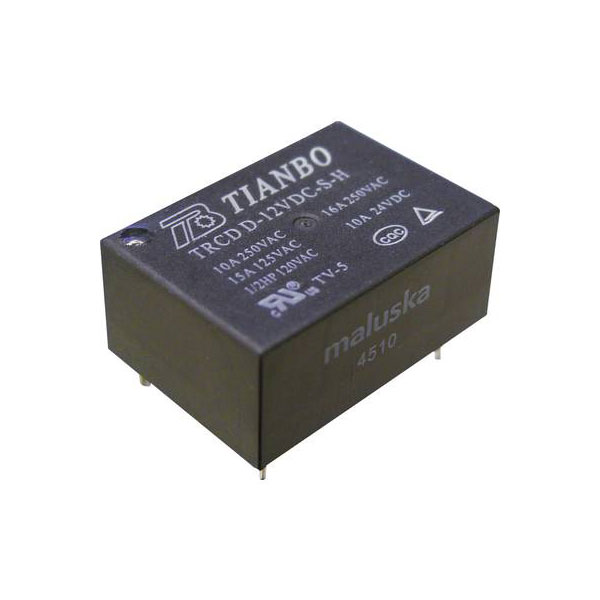

Tianbo TRCD-L-12VDC-S-H PCB Relay 12V DC 16A Single-contact

Tianbo Electronics manufactures the TRCD-L-12VDC-S-H, a PCB relay designed for 12 V DC operation with a capacity of 16 A. This mini relay is suited for printed circuit board mounting and is ideal for use in applications requiring reliable switching, such as automotive and industrial control systems. It provides efficient performance in a compact form, accommodating various space-constrained electronic designs.

Coil Voltage	12V DC
Contact Configuration	1NO
Switching Current	16A
Coil Resistance	720Ω
Connection	Solder pins
Contact Material	Silver alloy
Control Mode	monostable, 1 coil
Dimensions	(L x W x H) 23 x 16.1 x 10.2 mm
Height	10.2mm
Length	23mm
Maximum Temperature	+85°C
Min. pick-up Voltage	9V DC
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Mounting Type	PCB
Type	PCB relay
Width	16.1mm
